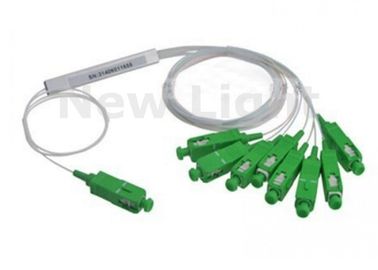

SAPC MINI Single Mode 1x8 PLC Splitter , FTTH PLC Steel Tube Type FBT Fiber Coupler

SAPC MINI Single Mode 1x8 PLC Splitter , FTTH PLC Steel Tube Type FBT Fiber Coupler

SAPC MINI Single Mode 1x8 PLC Splitter , FTTH PLC Steel Tube Type FBT Fiber Coupler

Product Details:

Place of Origin: China
Brand Name: New Light
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiate
Packaging Details: 1 set per pack
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10000/month
Contact Now
Detailed Product Description
Name: Fiber Optic Coupler Splitter Connector Type: SC
Polish: APC Cable Diameter: 0.9mm
Mode: Single Mode OEM: Available

SAPC MINI PLC 1X8 Single mode fiber Optical splitter FTTH PLC steel tube type FBT optical couple







Feature:



*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used





Application:



*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)




Specification:



1xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85





SAPC MINI Single Mode 1x8 PLC Splitter , FTTH PLC Steel Tube Type FBT Fiber Coupler
