Quick Assembly Connector

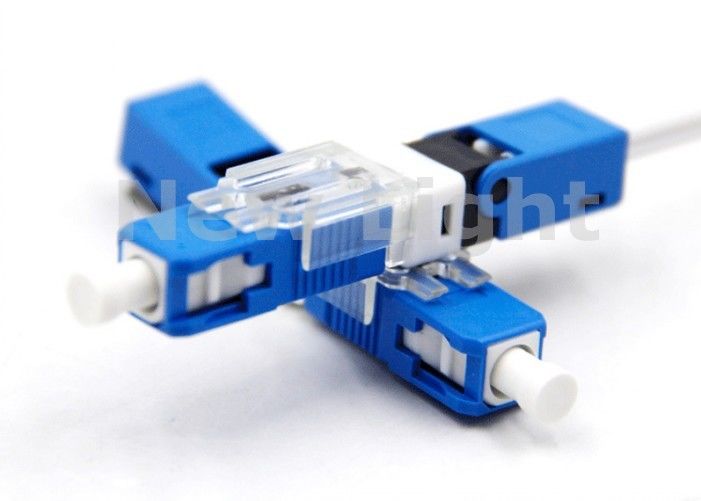

Embedded Type Fiber Optic Fast Connector UPC Polish For FTTH Outlets

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Embedded Type Fiber Optic Fast Connector UPC Polish For FTTH Outlets

Brand Name:	New Light
MOQ:	100
Price:	0.26~0.7
Packaging Details:	10pcs per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Blue

Connector:

Polish:

UPC

Model:

Single Mode

MOQ:

Single Mode Fiber LC Connector

OEM:

Available

Supply Ability:

10000/month

Highlight:

fiber optic cable connectors

multimode fiber connectors

Product Description

Embedded Type Single Mode SC Connector , FTTH Fiber Optic Fast Connector

FTTH SC UPC Optical fibe quick connector SC PC FTTH Fiber Optic Fast Connector Embedded type

Feature:

1.Low insertion loss, 0.2dB, 0.3dB, customer optional
2.High return loss, 40dB, 45dB, 50dB, customer optional
3.Reliable, durability over 500 times mating
4.Low environmental sensitivity, adopt to complex environment
5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .

Applications:

1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications

Item	Paramete
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable
Cable Scope	2.0/3.0 indoor cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -40dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Teperature	-40~+85℃
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Durabiltiy (500 times mating)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Embedded Type Fiber Optic Fast Connector UPC Polish For FTTH Outlets 0
