Product Details:
|
| Name: | Duplex Fiber Optic Patch Cord | Fiber Type: | Duplex |
|---|---|---|---|
| Color: | Gray | Outer Diameter: | 3.0mm |
| Material: | PVC | OEM: | Available |
| High Light: | duplex fiber optic patch cable,fiber optic drop cable |
||

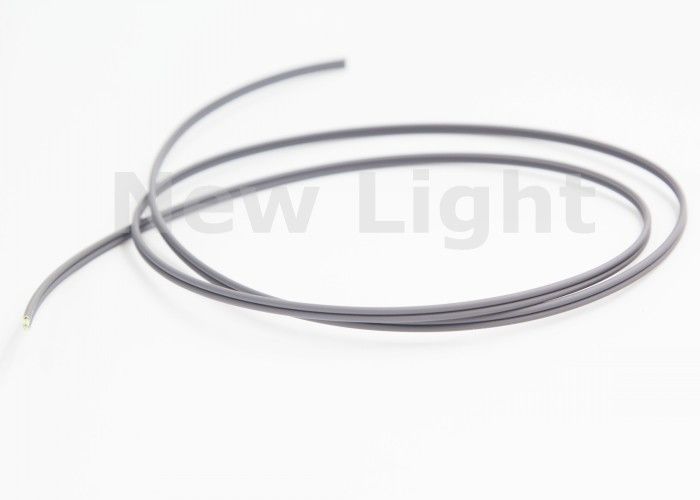

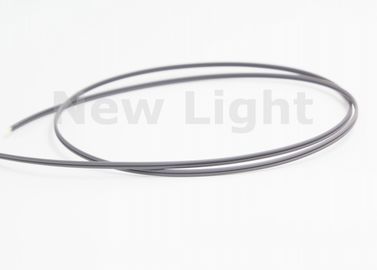

Indoor Singlemode Duplex Fiber Cable Gray color Dimater 3mm for Patch cord use
Introduction:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
| Number of Conductors | 2 |
| Certification | UL ,ROHS,SGS |
| Fiber | SM/MM/OM3/OM4 |
| Fiber Core | 2-24 core |
| Jacket Material | PE /LSZH/PU |
| Laying method | Pipeline/Overhead/Direct bury/Duct |
| keywords | outdoor fiber optic cable |
| Color | Black or customized |
| Fiber brand | Corning LS, etc |
| Fire Resistant | Yes |
| Armored or not | Corrugated steel tape armored |
Features:
* High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
* Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,physically soft.
* Direct splicing between tight buffer cables and need no tie-in box or pigtail.
* Suitable for installation,operation,and convenient for maintenance.
Applications
* As building to building connecting cable ;
* As indoor soft cable along the wall,ceiling,between layers and in conduits ;
* As pigtails,movable connectors and patch cords for communication equipment .
| Fiber count | 1 | |||||
| Outer diameter (mm) | 1.6 | 1.8 | 2 | 2.4 | 3.0 | |
| Nominal weight(kg/km) | 2.9 | 3.2 | 3.5 | 5 | 6.8 | |
| Max.tensile strength(N) | Short-term | 80 | 80 | 100 | 100 | 150 |
| Long-term | 40 | 40 | 60 | 60 | 80 | |
| Min.Bending Radius(mm) | Dynamic | 20D | ||||
| Static | 10D | |||||
| Max.Crush Resistance (N/100m㎡) | 500 | |||||
