Product Details:
|
| Name: | Single Mode Fiber Optic Cable | Fiber Type: | Simplex |
|---|---|---|---|
| Color: | Green | Outer Diameter: | 0.9mm |
| Material: | TPEE | OEM: | Available |
| High Light: | duplex fiber optic patch cable,fiber optic drop cable |
||

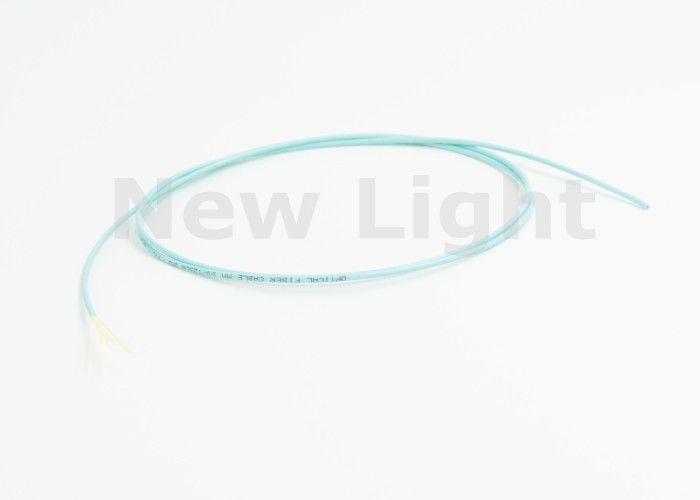

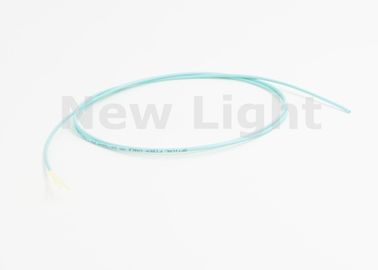

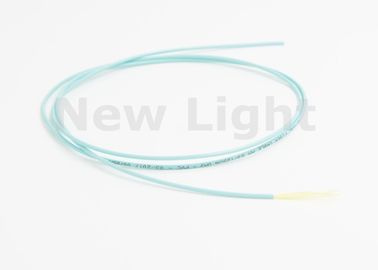

Pigtail use Simplex Single mode 0.9mm Fiber optic cable TPEE material Green color
| Material |
OS1 9/125μm (1310/1550nm) |
OM1 62.5/125μm (850/1300nm) |
OM2 50/125μm (850/1300nm) |
OM3 50/125μm (850/1300nm) |
|||||||
| Attenuation (dB/km) Typical Values | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 2.7/0.7 | |||||||
| Minimum Bandwidth (MHz•km) | N/A | 400/400 | 160/500 - | 1500/500 - | |||||||
| Primary Buffer Diameter | 250μm | 250μm | 250μm | 250μm | |||||||
| Strength Members | 4x1320 Decitex Kevlar element | ||||||||||
| Storage /Operating/ Installation Temperature | -20℃~+60℃ | ||||||||||
| Sheath material | PVC or LSZH Sheath | ||||||||||
| Fiber Optic Cable Specification | |||||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 16 | 24 | ||||
| Nominal Outer Diameter(mm) | 5.0±0.2 | 5.1±0.2 | 5.3±0.2 | 5.9±0.2 | 6.6±0.2 | 7.5±0.2 | 8.2±0.2 | ||||
| Nominal Weight (kg/km) | 19 | 21 | 23 | 28 | 34 | 46 | 57 | ||||
| Max. Tensile Load | Long Term (N) | 220 | |||||||||
| Short Term (N) | 660 | ||||||||||
Features:
* High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
* Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,physically soft.
* Direct splicing between tight buffer cables and need no tie-in box or pigtail.
* Suitable for installation,operation,and convenient for maintenance.
Introduction:
Single-mode cable:yellow;multi-mode cable:orange;options available for other colours,LSZH or flame-retardant materials upon request
