Fiber Optic Patch Cables Single Mode , Indoor Dimater 3.0mm Duplex Fiber Patch Cord

Brand Name:	New Light
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

Single Mode Duplex Fiber Optic Cable

Fiber Type:

Duplex

Color:

Purple

Outer Diameter:

3.0mm

Material:

PVC

OEM:

Available

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

simplex fiber optic cable

Product Description

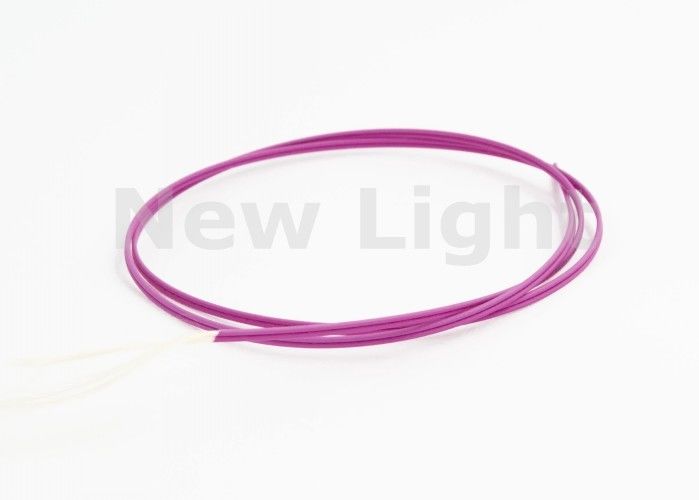

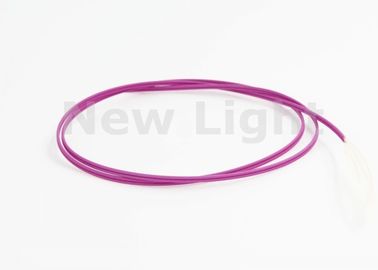

Purple color Indoor Singlemode Duplex Fiber Cable Dimater 3.0mm for Patch cord use

Applications

* As building to building connecting cable ;
* As indoor soft cable along the wall,ceiling,between layers and in conduits ;
* As pigtails,movable connectors and patch cords for communication equipment .

Features:

* High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
* Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,physically soft.
* Direct splicing between tight buffer cables and need no tie-in box or pigtail.
* Suitable for installation,operation,and convenient for maintenance.

Introduction:

The typical bow-type drop optical cable includes central optical fibers with 2 Steel wire/FRP/KFRP as the strength members placed on both sides, Steel wire/FRP/KFRP as messenger wire, a LSZH sheath is extruded outside.

FTTH drop cable
Fiber count	1-12core	Tight buffer	0.9mm Tight buffer no jelly
Fiber Type	G652D/G657A1/G657A2	Strength member	Steel wire/FRP/KFRP(0.5mm)
Outer sheath	LSZH	Cable Diameter dimensions	2.0( Height) × 3.0W ± 0.1 mm(width)
Messenger wires	Steel wire/FRP/KFRP	Transport and storage temperature range	-20 ℃ to + 70 ℃
Operation temperature range	-20 ℃ to + 70 ℃	Installation temperature range	0 ℃ to + 60 ℃
Tension Load (N)	Short term :800N Long term :500N	Crush Load(N)	Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius	30 x OD	Minimal operation bending radius	15 x OD

Fiber Optic Patch Cables Single Mode , Indoor Dimater 3.0mm Duplex Fiber Patch Cord 0
