Single Mode SC-LC Optical Fiber Patch Cord with 2.0mm Diameter for FTTH Cabling System

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

NewLight

Certification:

ISO ,ROSH

Name:

SC LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

SC-LC

Color:

Green

Length:

3 Meter

Minimum Order Quantity:

1~100000

Price:

0.1~100

Packaging Details:

1 pcs per pack

Delivery Time:

7 working days

Payment Terms:

T/T,Western Union,MoneyGram,Paypal

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

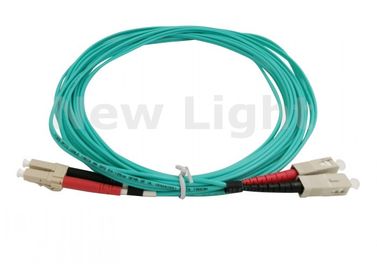

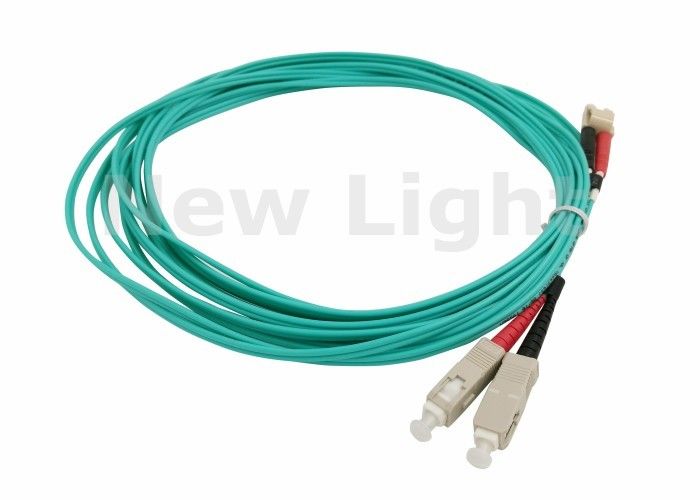

FTTH SC-LC Optical Fiber Patch Cord

Single Mode 2.0mm Diameter Fiber Optic Jumper Cable for Cabling Systems

Product Overview

SC-LC UPC 3M single mode duplex fiber optic patch cord cable designed for FTTH applications with 2.0mm diameter construction.

Key Characteristics

Connector Types: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
Cable Quantity: Simplex, Duplex, 6 cores, 12 cores, 16 cores, 24 cores, 36 cores, 48 cores
Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized lengths
Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
Insertion Loss	dB	≤0.2 (PC/UPC), ≤0.3 (APC)	≤0.2 (PC), ≤0.3 (UPC)	≤0.2 (PC), ≤0.3 (UPC)	≤0.3
Return Loss	dB	≥50 (PC), ≥55 (UPC), ≥60 (APC)	≥30 (PC), ≥45 (UPC)	≥30 (PC), ≥45 (UPC)	≥35 (PC), ≥55 (UPC), ≥75 (APC)
Wavelength	nm	1310, 1510
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating Temperature	℃	-40~75
Storage Temperature	℃	-45~85
Cable Diameter	mm	φ3.0, φ2.0, φ0.9

Applications

CATV Systems
Optical Fiber Communication Systems
Optical Fiber Data Transmission
Building Network Access
Cabling Systems & ODF
FTTX Applications

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability and durability
High temperature stability
CE, ROHS, FCC compliant
