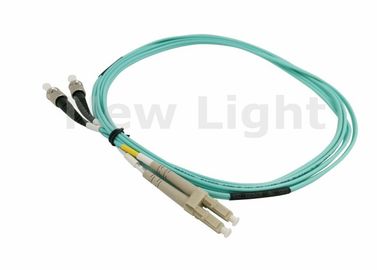

LC ST 50 / 125 Multimode Duplex Fiber Patch Cord PVC Cable UPC Polish Connector

Brand Name:	NewLight
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC ST Fiber Patch Cord

Diameter:

2.0mm

Model:

Multimode

Connector:

LC-ST

Color:

Aqua

Length:

3 Meter

Supply Ability:

1000000

Highlight:

duplex fiber patch cord

sc sc fiber patch cord

Product Description

Green color LC-ST OM3 Multimode 50/125 Duplex Optical fiber patch cord PVC cable UPC polish connector

Parameters:

Conector type	FC,SC,ST,LC,MU
	Single Mode			Multimode
Endface	PC	UPC	APC	PC
Insert loss(dB)	≤0.30			≤0.30
Exchangeability(dB)	≤0.20			≤0.20
Repeatability(dB)	≤0.10
Return loss(dB)	≥45	≥50	≥60	≥35
Core/Caldding diameter	9/125			50/125 or 625.5/125
Durability	>1000
Operating temperature	-25~+80 degree

Type:

* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.

* Ferrule endface: PC,UPC,APC,etc.

* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.

* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.

* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.

Application:

* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber access network

* Optical fiber sensor

* Optical fiber CATV system

* Optical fiber data transmission

* Local area network

Description:

The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

Specification:

Connector	LC to ST	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Aqua
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Features

* Good durability

* Good exchangeability

* High temperature stability

* Low insertion loss and back reflection loss

* Superior quality standard PC/UPC/APC Polishing

* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC

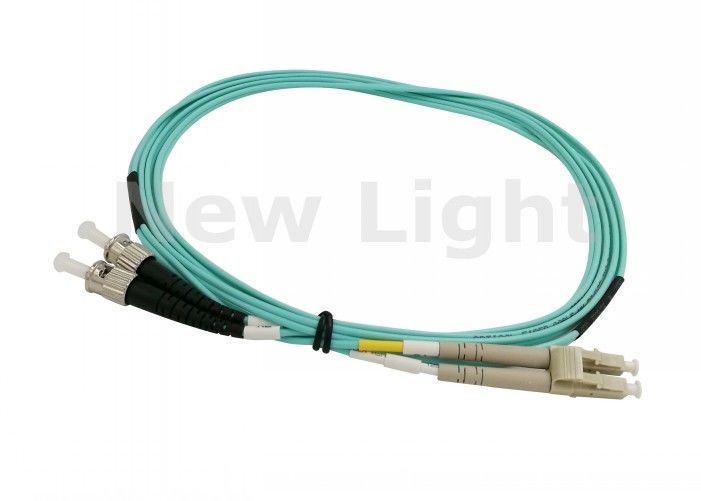

LC ST 50 / 125 Multimode Duplex Fiber Patch Cord PVC Cable UPC Polish Connector 0
