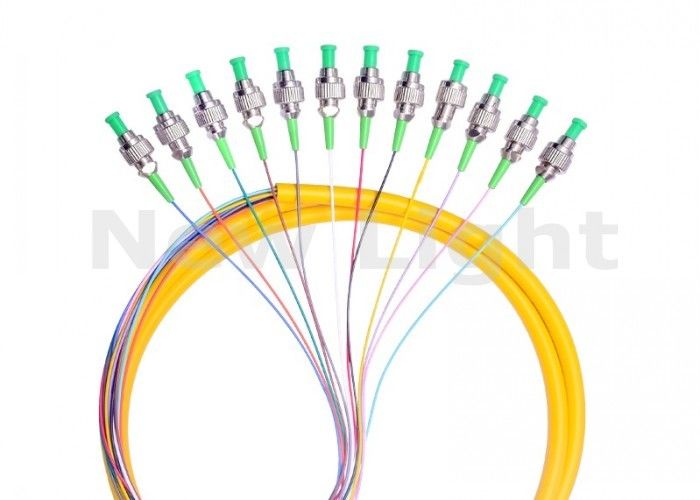

Simplex Single Mode Fiber Optic Jumper Cables FC UPC 12 Core Fanout Fiber Optic Pigtail

Brand Name:	NEW LIGHT
MOQ:	10pcs
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

IS09001-2008.ROHS

Name:

FC Pigtail

Diameter:

0.9mm

Model:

Single

Connector:

Color:

Option

Length:

1 Meter

Supply Ability:

10000pcs/month

Highlight:

single mode fiber jumpers

ftth fiber optic cable

Product Description

FC UPC 12 core fanout fiber optic Pigtails SM simplex 12 core Optical fiber pigtail 12 core color

Specification:

Pigtail Connector	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-25~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	PVC, LSZH
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Features:

1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional

Description:

Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.

We provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.

Features

1. Simplex and duplex connector available

2. High precision of mechanical dimensions.

3. Good exchange ability and good durability;

4. Low Insertion Loss, High temperature Stability and Good exchangeability.

5 Fan-out Available, Pigtail Available, Various

Boot(cable) Size Available

Application:

* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber access network

* Optical fiber sensor

* Optical fiber CATV system

* Optical fiber data transmission

* Local area network

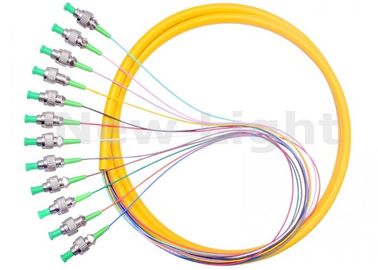

Simplex Single Mode Fiber Optic Jumper Cables FC UPC 12 Core Fanout Fiber Optic Pigtail 0
