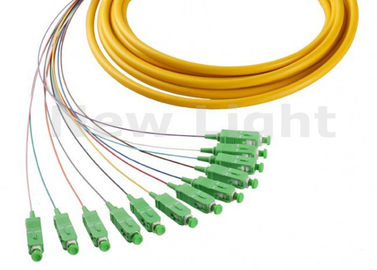

1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails

1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails
1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails
1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails 1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails

Large Image :  1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails

Product Details:
Place of Origin: China
Brand Name: NEW LIGHT
Certification: IS09001-2008.ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails

Description
Name: FC Pigtail Diameter: 0.9mm
Model: Single Connector: FC
Color: Option Length: 1 Meter
Highlight:

fiber optic pigtail

,

ftth fiber optic cable

SC APC 12 core fanout fiber optic Pigtails SM simplex 12 core Optical fiber pigtail 12 core color





Description:





Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.



We provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.





Specification:





Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc



Features:

1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional







1. Simplex and duplex connector available

2. High precision of mechanical dimensions.

3. Good exchange ability and good durability;

4. Low Insertion Loss, High temperature Stability and Good exchangeability.

5 Fan-out Available, Pigtail Available, Various

Boot(cable) Size Available





Application:



* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber access network

* Optical fiber sensor

* Optical fiber CATV system

* Optical fiber data transmission

* Local area network







1 Meter Fiber Optic Jumper Cables SM Simplex SC APC 12 Core Fanout Fiber Optic Pigtails 0
