Product Details:
|
| Color: | Yellow | Connector: | MPO-LC |
|---|---|---|---|
| Name: | MPO-LC Optical Patch Cord | Mode: | Single Mode |
| Core: | 24 Cores | Length: | Option |
| Highlight: | mpo fiber cable,mpo to mpo cable |
||

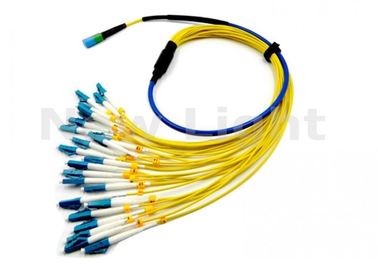

24 Core MPO-LC 1M Cross Connected Optical Fiber Patch Cord 24Cores MPO-LC Single Mode
Feature:
MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).
1. Utilize MPO/MTP Connectors
2. Rapid Deployment
3. Factory terminated
4.100% tested (test data supplied)
5. High density cable
6. Optimized performance
7. Compliant to directive 2002/95/EC (ROHS) and REACH SVHC
8. MPO connector complies with IEC-61754-7& EIA/TIA-604 -5
Specifications:
| Model | SM | MM | |
| Connector fiber count | 8,12,24 Core | ||
| Polish | PC,APC | PC | |
| color | Standard(Green),Elite(Yellow) | Standard(Beige),Elite(Aqua) | |
| Inserting loss | Standard | ≤0.7dB | ≤0.5dB |
| Elite low loss | ≤0.3dB | ≤0.3dB | |
| Return loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Mating) | ≤0.2dB | ||
| Test wavelength | 1310/1550nm |
850/1310nm |
|
Applications:
Data communication network
Optical system access network
Storage area networking fiber channel
High density architectures
