Product Details:
|
Color: | Green | Connector: | SC |
---|---|---|---|
Polish: | APC | Mode: | Single Mode |
Attenuator: | 15dB | Material: | Metal,plastic |
Highlight: | variable optical attenuator,fixed optical attenuator |
Fiber Optic system use SC APC female to male 15dB fiber optic Attenuator SC APC female male
Quick details:

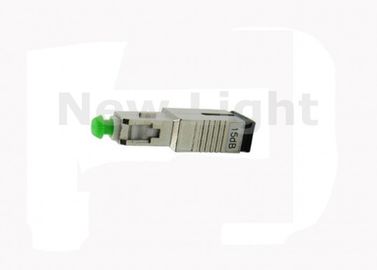

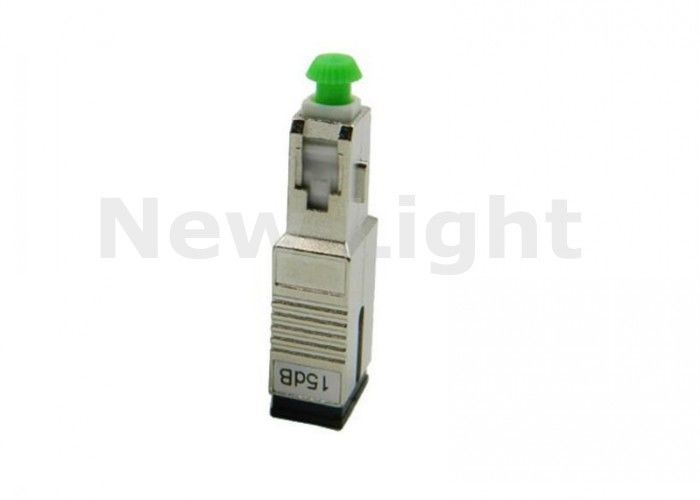

SC/APC 15dB Fixed Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery
Features:
High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB
Specification:
Parameter table: Description | Unit | Condition | Values |
Return Loss | dB | PC | ≥50 |
dB | APC | ≥60 | |
Attenuation Accuracy | dB | 1dB-10dB | <0.5 |
dB | 11dB-20dB | <1 | |
Operating Wavelength | nm | SM | 1200,1600 or 1310,1550 |
nm | MM | 850, 1300 | |
Polarization Dependent Loss | dB | / | ≤0.2 |
Maximum Input Power | mW | / | 200 |
Operating Temperature | °C | / | -40 to +80 |
SC/APC Attenuator Dtail:
We offers an extensive line of dual wavelength (1310/1550nm) Singlemode fiber optic attenuators. These versatile in-line attenuators are the perfect solution for attenuating Singlemode fiber connectors for both lab and commercial applications. Constructed of the highest quality materials and factory tested, this series offers the widest array of connector styles and polish types.
Attenuation Value 1dB ~ 30dB | |
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm) | |
Premium | |
Return Loss | UPC >55dB |
APC >65dB | |
Attenuation Accuracy |
1 ~ 7 dB ±0.5dB |
8 ~ 12 dB ±0.7dB | |
13 ~ 17 dB ±1.0dB | |
18 ~ 25 dB ±1.3dB | |
Maximum Optical Input Power 1000mW | |
Polarization Dependent Loss ≤0.1dB | |
Operating Temperature Range -40 to 75 | |
Storage Temperature Range -40 to 85 | |
Humidity 95%RH |
FAQ
1. Are you the real factory?
Yes we are the real factory with 16 years history
2. What is your fiber brand?
Fiber brands including YOFC FiberHome
3. What is your main products?
Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords
4. Product quality guarantee period?
20 years Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
6. What is your delivery time?
Within 48 hours for normal kinds of fiber optic products
7. MOQ: what is your minimum quantity?
MOQ for Fiber Optic Cable Patch Panel 10 set
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds
8. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered
9. Payment
For large orders: T/T
For small orders: T/T and Paypal are acceptable
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
