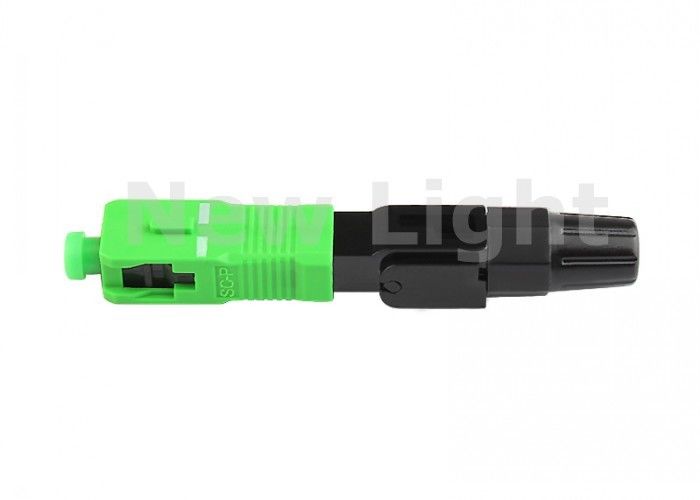

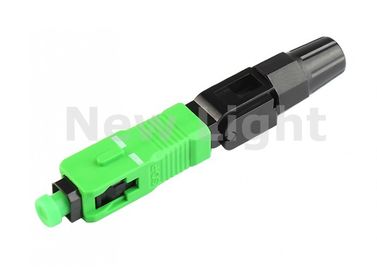

Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels

Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels

    • Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels
    • Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels
  • Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiate
    Packaging Details: 10pcs per pack
    Delivery Time: within 2 weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10000 pcs/month
    Contact Now
    Detailed Product Description
    Color: Black,Green Material: Plastic
    Connector: SC Model: Singlemode
    Polish: APC Name: SC Connector

    Plastic Material Fiber Optic Connectors Cold Joint Special SC APC Fiber Connector



    Embedded SC APC optical fiber quick connector cold joint special SC cold jointradio CATV









    Application:





    * Patch panels
    * Distribution frames
    * Maintenance or emergency restoration of fiber networks
    * FTTH Outlets
    * Connection at the desk for LAN environments





    Advantage:



    1) All products must 100% testing before shipping

    2) Typical IL<0.3dB for most of suppliers, while we can accept 100% <0.3dB for mass production

    3)All products must 100% test the end face

    4) the most competitive price and timely delivery.
    5) free sample to check.



    Description:



    Field Assembly SC/PC fast connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.



    Specification:





    Applicable for 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
    Optical fiber diameter φ125um (657A&657B)
    Tight buffer diameter φ250um
    Fiber mode Single mode
    Operation time About 10s (exclude fiber cut)
    Insert loss ≤0.3dB (1310nm & 1550nm)
    Return loss ≥45dB
    Fastening strength of naked fiber ≥ 5N
    Tight clamping force cladding

    ≥ 8N









    Plastic Material Fiber Optic Fast Connector Cold Joint For Patch Panels
