Product Details:
|
| Name: | SC Tail Set | Connector: | SC |
|---|---|---|---|
| Diameter: | 0.9mm | Color: | Blue Or Customized |
| Mode: | SM/MM | OEM: | Available |
| High Light: | fiber optic parts and accessories,fiber optic accessories |
||

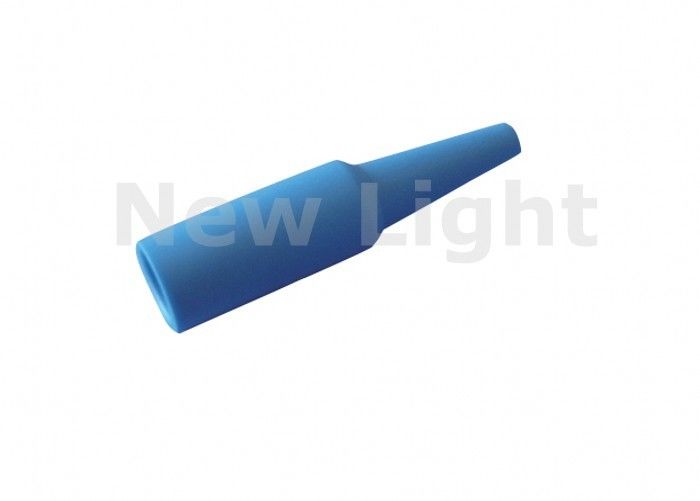

Fiber patch cord use SC tail set 0.9mm diameter Blue color
Introduction:
Today and future communication technology demands fast,efficient and safe performance in the data communication process. Large and complex databanks all interconnected must be able to receive and transmit data without outside interferences. ADTEK manufactures an extensive fiber optic production line, which are the right solution for such complex systems.
Applications
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications
Description:
An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent,The fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.
Specification:
| Connector type | SC |
| Standards | IEC,RoHS |
| Color | Customized |
| Mode | SM/MM |
| Sleeve | Ceramic/Phosphor Bronze |
|
Parameter |
Unit |
LC,SC,FC,ST,MTRJ,MOP | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -40~85 | |||
