Product Details:
|
| Name: | SC Housing | Connector: | SC |
|---|---|---|---|
| Diameter: | 2.0/3.0mm | Color: | Pink Or Customized |
| Mode: | SM/MM | OEM: | Available |
| Highlight: | fiber optic parts and accessories,fiber optic cable assembly |
||

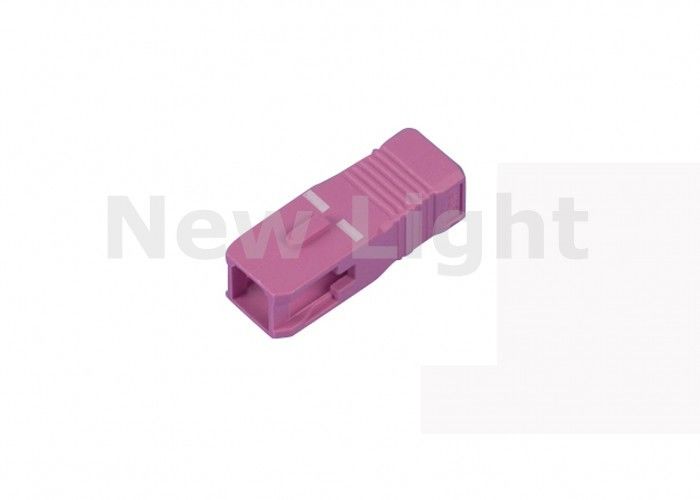

Fiber patch cord use SC housing Pink color for Local area network
Features:
1. Accurate mechanical dimensions
2. Low insertion loss,high return loss
3. Excellent compatibility
4. Excellent repeatability
5. No polishing,no Epoxy
6. More convenient to install
7. Life time: at least 1 year
Application:
* Optical fiber communication system
* Optical fiber test equipment
* Optical fiber access network
* Optical fiber sensor
* Optical fiber CATV system
* Optical fiber data transmission
* Local area network
Description:
An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent,The fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.
Specification:
| Connector type | SC |
| Standards | IEC,RoHS |
| Color | Customized |
| Mode | SM/MM |
| Sleeve | Ceramic/Phosphor Bronze |
|
Parameter |
Unit |
LC,SC,FC,ST,MTRJ,MOP | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -40~85 | |||
