Color Customized Fiber Optic Parts LC Tail Set For Optical Fiber Access Network

Brand Name:	New Light
MOQ:	100
Price:	0.1~100
Packaging Details:	100 pcs per pack
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

LC Tail Set

Connector:

Diameter:

2.0/3.0mm

Color:

Pink Or Customized

Mode:

SM/MM

OEM:

Available

Supply Ability:

100000 per week

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

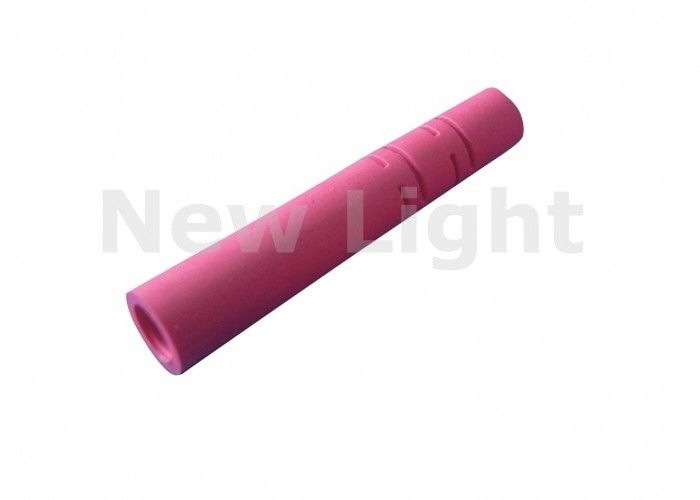

Fiber patch cord use LC tail set 2.0 / 3.0 mm diameter Pink color

Fiber optic connector ordering guide

Connector type	FC, SC, ST, LC, SMA, MU, MTRJ, Big D, Small D and so on
Mode type	Singlemode, Multimode or APC
Fiber count	Simplex,Duplex
Ferrule	Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface	PC, UPC, APC
Housing color	Standard(Blue/Beige/Green) or OEM color
Packing	Multi-piece or one piece type available,Normally polybag+carton box, can be customized

Description & technical parameter of Fiber optic connector:

Item	Mode Type	PC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB
	MM	≤0.30dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥50dB	≥55dB	≥65dB
	MM	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C ~ +85°C
Storage Temperature		-40°C ~ +85°C
Ferrule concentricity: SM < 1um; MM < 1.4um
Ferrule inner diameter tolerance +/- 0um
Ferrule outer diameter tolerance +/- 0.5um

Features:

1. Accurate mechanical dimensions

2. Low insertion loss,high return loss

3. Excellent compatibility

4. Excellent repeatability

5. No polishing,no Epoxy

6. More convenient to install

7. Life time: at least 1 year

Description:

An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent,The fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.

Specification:

Parameter	Unit	LC,SC,FC,ST,MTRJ,MOP
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating temperature	℃	-40~75
Storage temperature	℃	-40~85

Color Customized Fiber Optic Parts LC Tail Set For Optical Fiber Access Network 0
