Product Details:
|
| Name: | ST Tail Set | Connector: | ST |
|---|---|---|---|
| Diameter: | 2.0/3.0mm | Color: | Yellow Or Customized |
| Mode: | SM/MM | OEM: | Available |
| High Light: | fiber optic parts and accessories,fiber optic cable assembly |
||

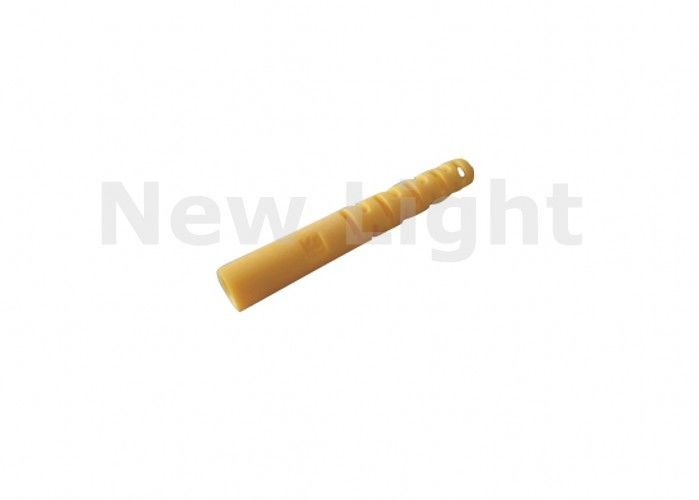

Fiber patch cord use ST tail set 2.0 / 3.0 mm diameter Yellow color
Description:
Optical fiber connectors, it is the two end precision optical fiber optic jumper,dock up according to the transmission medium can be divided into common silicon-based optical single-mode, multi-mode jumpers, and other such as plastic for transmission medium of fiber optic jumper cables,By connecting head structure forms can be divided into: FC jumper cables, SC jumpers, ST jumper cables, LC jumper cables,MTRJ jumper cables, MPO jumper cables, MU jumper cables, SMA jumper cables
Features:
1. Accurate mechanical dimensions
2. Low insertion loss,high return loss
3. Excellent compatibility
4. Excellent repeatability
5. No polishing,no Epoxy
6. More convenient to install
7. Life time: at least 1 year
Application:
* Optical fiber communication system
* Optical fiber test equipment
* Optical fiber access network
* Optical fiber sensor
* Optical fiber CATV system
* Optical fiber data transmission
* Local area network
Specification:
|
Items
|
Single mode
|
Multimode
|
||||||
|
PC
|
UPC
|
APC
|
62.5/125
|
50/125
|
50/125 10G
|
|||
|
Insertion Loss
|
<0.2dB
|
<0.3dB
|
||||||
|
Return Loss
|
e45dB
|
e50dB
|
e60dB
|
e35dB
|
||||
|
Durability
|
<0.1dB typical change,500 matings
|
|||||||
|
Operating Temperature
|
-40 to +75
|
-40 to +75
|
||||||
|
Ferrule Hole Sizes
|
125.0+1/-0um, Conentricity:d1um
|
125um,Conectricity:1d3um
|
||||||
|
125.3+1/-0um, Conentricity:d1um
|
127um,Conectricity:1d3um
|
|||||||
|
125.5+1/-0um, Conentricity:d1um
|
128um,Conectricity:1d3um
|
|||||||
|
126.0+1/-0um, Conentricity:d1um
|
||||||||
