OM4 12 Core MPO MTP Cable with LSZH Jacket for High-Density Data Applications

Brand Name: New Light
MOQ: 1~10000
Price: 6~15
Packaging Details: 1 piece per pack
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Color:
Green
Name:
MPO Fiber Cable
Connector:
MPO - MPO
Length:
5 Meters
Mode:
Multimode
OEM:
Available
Supply Ability:
1000 pcs per month
Highlight:

mpo to mpo cable

,

mpo fanout cable

Product Description
OM4 5 Meter B Type MPO MTP Cable 12 Core Multimode

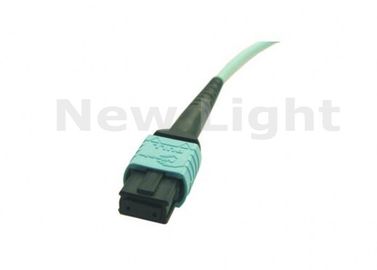

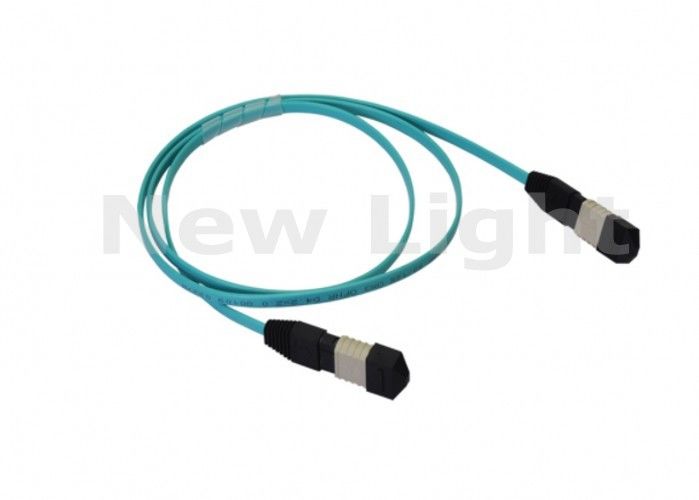

12-core Multimode MPO Male to MPO Male Patch Cord, OM4, 5 Meter, B Type, Aqua Color, 3.0mm Mini Round LSZH
Product Overview
MPO connectors are multi-fiber components designed for high-density backplane and PCB applications in data and telecommunications systems. These connectors provide up to 12 times the density of standard connectors, delivering significant space and cost savings. MPO patch cords feature precision molded MT ferrules with metal guide pins and precise housing dimensions to ensure optimal fiber alignment during mating. They can be mass-terminated in combinations of 4, 8, 12, or 24 fibers.
Key Features
  • Precision molded MT ferrule construction
  • High-precision guide pins for exact fiber alignment
  • Compact design supporting 4, 8, 12, or 24 fibers
  • IEC 61754-7 compliant
  • Telcordia GR-1435-CORE compliant
Applications
  • Asynchronous Transmission Mode (ATM)
  • Gigabit Ethernet networks
  • Active device and transceiver interfaces
  • CATV, video, and multimedia systems
  • Premise installations
  • Telecommunication networks
Standards Compliance
Jacketed cable complies with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame ratings. Compliant with Directive 2002/95/EC (RoHS) and REACH SvHC. MPO connector complies with IEC-61754-7 and EIA/TIA-604-5 standards.
Technical Specifications
Parameters Standard Fiber Cable Assemblies
Fiber Type SM (G.652/G.657A) | MM (OM1/OM2/OM3)
Jacket Materials LSZH / OFNR / PVC
Connector Type SC / LC / ST / LC / MU / MTRJ / MPO / E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm | 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107 ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107 ≥45dB (PC/UPC) ≥55dB (APC) | ≥35dB (PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail / Simplex / Duplex / Fan-out Patchcord
Operating Temperature (°C) -10 to +70
Storage Temperature (°C) -40 to +85
Package 1 unit/bag
*All values specified are with connectors
MPO Configuration Details
MPO patch cables are used for interconnections between MPO cassettes or connections to active equipment with MPO/MTP interfaces. When connecting MPO patch cords through an MPO coupler, one of the two MPO connectors must be male (equipped with pins). Available in three wire map configurations: Straight, Total Flipped, or Pair Flipped. Offered in both multi-mode and single-mode fiber cable options.
Performance Specifications
Type/Performance Singlemode (APC polish) Multimode (PC / Flat Polish)
Standard | Elite Low Loss Standard | Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB | ≤ 0.35dB ≤ 0.60dB | ≤ 0.35dB
Return Loss ≥ 50dB | N/A
Operating Temperature -40°C to 80°C -40°C to 80°C
Test Wavelength 1310nm 850nm
Contact: WHATSAPP +8613534063703
