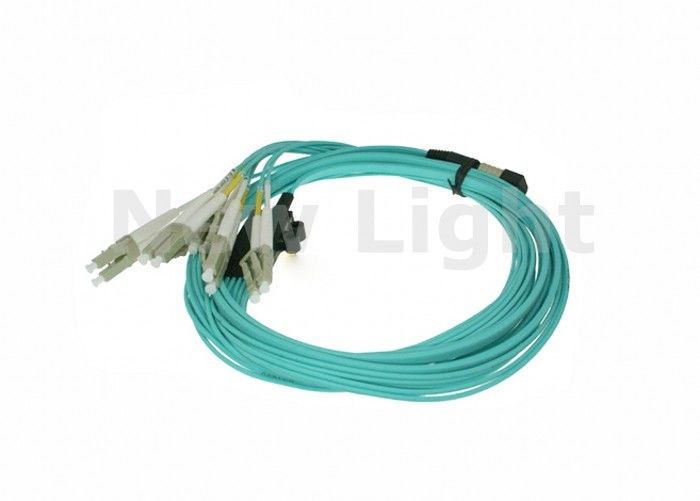

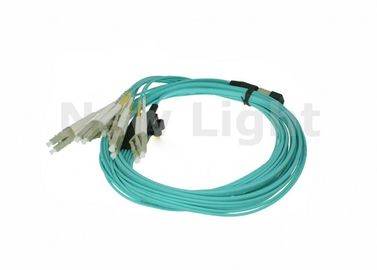

10 Meter OM4 12 core 3.0mm MPO MTP Cable LSZH Jacket MPO TO LC Cable

10 Meter OM4 12 core 3.0mm MPO MTP Cable LSZH Jacket MPO TO LC Cable

    • 10 Meter OM4 12 core 3.0mm MPO MTP Cable LSZH Jacket MPO TO LC Cable
  • 10 Meter OM4 12 core 3.0mm MPO MTP Cable LSZH Jacket MPO TO LC Cable

    Product Details:

    Place of Origin: China
    Brand Name: New Light
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiate
    Packaging Details: 1 piece per pack
    Delivery Time: within 2 weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000 pcs per month
    Contact Now
    Detailed Product Description
    Color: Green Name: MPO-LC Cable
    Connector: MPO - LC Length: 10 Meters
    Mode: Multimode OEM: Available
    High Light:

    mpo fiber cable

    ,

    mpo fanout cable

    10 Meter MPO(Female)-LC/UPC OM4,12cores,3.0mm Mini Fiber Cable,LSZH Jacket,2.0mm Fan-out LC/UPC Cable







    Description:





    MPO/MTP to LC Internal Fan Out Cable interface multifibre MPO/MTP with discrete single fiber (LC/SC mainly) connectors. Assemblies are typically used to directly interconnect MTP/MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. Replacing traditional MTP/MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost
    MPO/MTP to LC Fan Out Cable is built with highest quality components. Standard MPO/MTP® as well low loss Elite versions and premium LC/SC are offered featuring low insertion loss for demanding high speed networks where power budgets are critica





    Features:




    * G652D, G.657A1, OM3, OM4
    * OD: 12 colors’ 0.9mm fiber cable
    * 12*Fibre Ferrule MPO/MTP Male / Female s available in end A
    * LC , ST, FC, SC connectors are available in end B
    * Female (standard) and Male MPO/MTP Connectors
    * Polarity A (standard), B or C
    * Factory Terminated and Tested
    * Optional Pulling Element Available
    * LSZH or PVC cable jacket available





    MPO/MTP® Interface - MPO/MTP® components feature superior optical and mechanical properties
    Optimised Performance - Low loss MPO/MTP® Elite, discrete Premium (LC.SC mainly) connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget high speed network environment
    High Density - Multifibre connector and compact dimension of ruggedised MicroCable ease space in costly data centre environments
    Rapid Deployment - Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
    Reliability - 100% tested - Combination of high quality components and manufacturing quality control guarantees product to the highest standard
    Next Generation Network Proof - Emerging high speed protocol are going to use MPO/MTP® interface









    Application:





    * Asynchronous Transmission Mode (ATM)
    * Gigabit Ethernet
    * Active Deviced/Transceiver Interface
    * CATV, Video and Multimedia
    * Premise Installations
    * Telecommunication Networks







    Standards Compliance:



    Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

    Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

    MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.





    Technical Specifications:

    Parameters Standard Fiber Cable Assemblies
    Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
    Jacket Materials LSZH/OFNR/PVC
    Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
    Ferrule Materials Ceramic
    Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
    Insertion Losss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB
    (PC/UPC/APC)
    ≤ 0.3dB
    (PC/UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB(PC/UPC)
    ≥55dB(APC)
    ≥35dB(PC/UPC)
    Exchangeability ≤ 0.2dB
    Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
    Operating Temperature (° C) -10~ + 70
    Storage Temperature (° C) -40 ~ +85
    Package 1unit/bag
    *All values specified are with connectors.








    Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
      Standard Elite Low Loss Standard Elite Low Loss
    Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
    Return Loss ≥ 50dB N/A
    Operating Temperature -40°C to 80°C 40°C to 80°C
    Test Wavelength 1310nm

    850nm









    10 Meter OM4 12 core 3.0mm MPO MTP Cable LSZH Jacket MPO TO LC Cable 0
