12 Core Single Mode MPO Cable 10 Meter MPO Patch Cord for High-Density Fiber Optic Applications

Brand Name:	New Light
MOQ:	1~10000
Price:	6~15
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Yellow

Name:

MPO-MPO Cable

Connector:

MPO - MPO

Length:

10 Meters

Mode:

Multimode

OEM:

Available

Supply Ability:

1000 pcs per month

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

5 Meter 9/125 B Type MPO to MPO Cable, 12 Core Single Mode Fiber Optic Cable

Product Overview

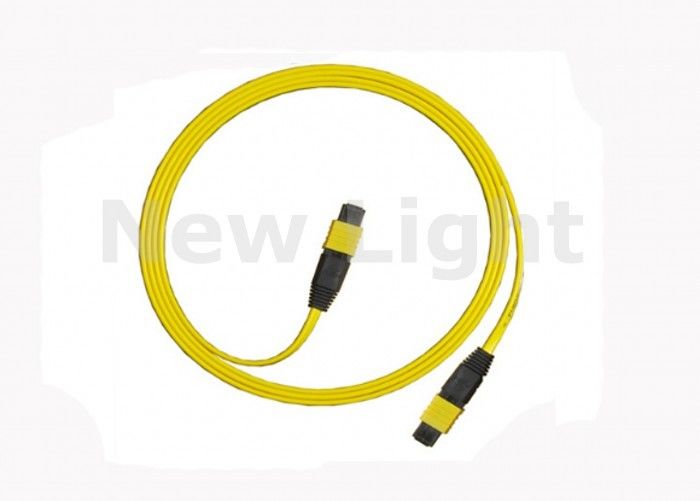

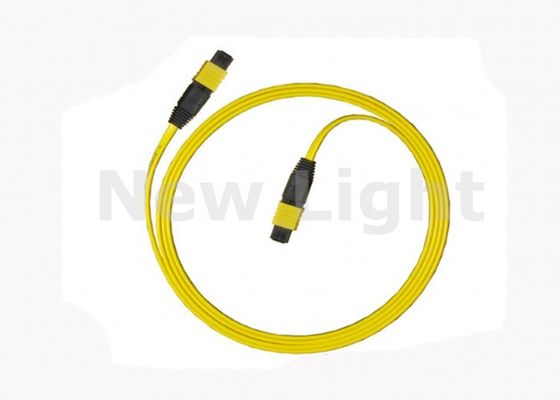

12-core Single Mode MPO Male to MPO Male Patch Cord, 5 Meter length, 9/125 B Type, Yellow Color

Description

Single mode and multimode MPO products are multi-fiber connectors used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.

MPO patch cords utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combinations of 4, 8, 12, or 24 fibers.

Specifications

MPO (female) to MPO (female)
MMF (50/125um), OM3
8-Core Fiber for QSFP+ Transceiver
Cable Length: 10-Meter (33ft)
Insertion loss: ≤0.6dB
Return loss: ≥20dB
Insert-pull test: 500 times <0.5 dB
Operation temperature: -40°C to +80°C
Pin Optional: Default FEMALE
POLARITY Optional: Default POLARITY B (For QSFP+ SR4)

Key Features

Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4, 8, 12, 24 fibers
IEC 61754-7 Compliant
Telcordia GR-1435-CORE compliant

Applications

Asynchronous Transmission Mode (ATM)
Gigabit Ethernet
Active Devices/Transceiver Interface
CATV, Video and Multimedia
Premise Installations
Telecommunication Networks

Standards Compliance

Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.

Technical Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A) \| MM(OM1/OM2/OM3)
Jacket Materials	LSZH /OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm \| 850±30/1300±30nm
Insertion Loss (dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC) \| ≤ 0.3dB (PC/UPC)
Return Loss (dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC) \| ≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10 to +70
Storage Temperature (°C)	-40 to +85
Package	1 unit/bag

All values specified are with connectors.

MPO Detail

MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped.

MPO patch cables are available in multi-mode and single-mode fiber cable.

Performance of Assemblies MTP/MPO Termination

Type/Performance	Singlemode (APC polish)	Multimode (PC / Flat Polish)
Standard	Elite Low Loss	Standard
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB
Return Loss	≥ 50dB	N/A
Operating Temperature	-40°C to 80°C	40°C to 80°C
Test Wavelength	1310nm	850nm

Contact via WhatsApp: +8613534063703
