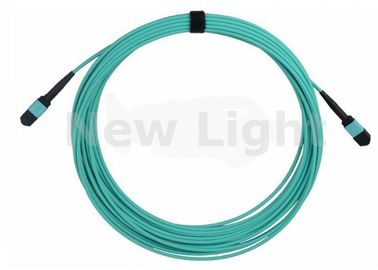

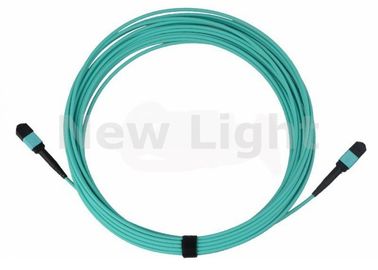

10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord

10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord
10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord
10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord 10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord 10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord

Large Image :  10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord

Product Details:
Place of Origin: China
Brand Name: New Light
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiate
Packaging Details: 1 piece per pack
Delivery Time: within 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

10 Meters 12 Core Multimode Fiber Optic Cable , 10G Green OM3 Fiber Patch Cord

Description
Color: Green Name: MPO-MPO Fiber Patch Cord
Connector: MPO - MPO Length: 10 Meters
Mode: Multimode OEM: Available
High Light:

mpo fiber cable

,

mpo fanout cable

MPO-MPO 10 meters 12 cores Multimode Fiber Optic patch cord OM3 10G Green color





Application:





* Asynchronous Transmission Mode (ATM)
* Gigabit Ethernet
* Active Deviced/Transceiver Interface
* CATV, Video and Multimedia
* Premise Installations
* Telecommunication Networks



Standards Compliance:



Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.

MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.



Description:



The single mode and multimode MPO products are multi fiber connectors sued in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector offers up to 12 times the density of standard connectors,providing significant space and cost savings.

MPO patch cord utilize precision molded MT ferrules,with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers.





Specifications:


- MPO (female) to MPO (female)
- MMF(50/125um), OM3
- 8-Core Fiber for QSFP+ Transceiver
- Cable Length: 10-Meter(33ft)
- Insertion loss : ≤0.6dB
- Return loss : ≥20dB
- Insert- pull test : 500times <0.5 dB
- Operation: temperature : -40°C ~ +80°C
- Pin Optional: Default FEMALE
- POLARITY Optional: Default POLARITY B (For QSFP+ SR4)



Features:



* Precision molded MT ferrule
* High precision guide pins for exact alignment
* Compact design, up to 4,8,12,24 fibers
* IEC 61754-7 Compliant
* Telcordia GR-1435-CORE compliant



Technical Specifications:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.




MPO Detail:



MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

MPO patch cables are available in multi-mode and single-mode fiber cable.





Performance of Assemblies MTP / MPO Termination:



Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
  Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm

850nm
