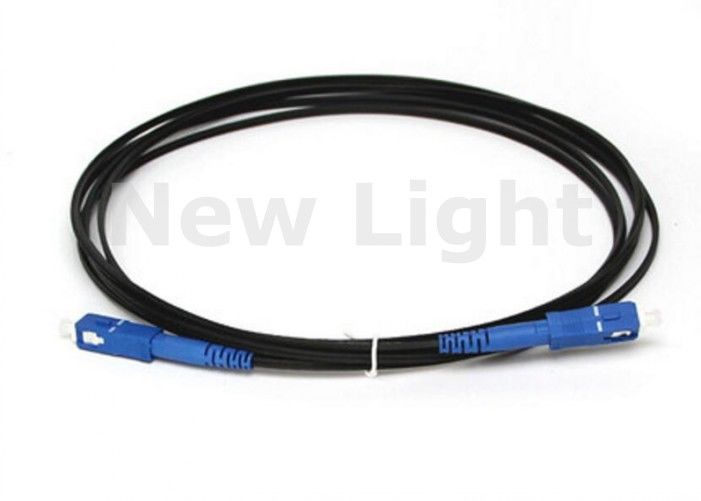

SC UPC 3M Outdoor FTTH Drop Patch Cable SC Singlemode Simplex Black color

Specification

Insertion loss: ≤ 0.3dB
Return loss:≥55dB
Durability; ≥1000 times
Operating temperature; -40~+80°
Working wavelength:1310-1550nm

Feature

Suitable for telecommuniction networks
Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN
High durability and reliability
Low insertion loss and high return loss
Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available

Description

The SC fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with NTT-SC products. Both single mode and multimode versions SC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Ordering options

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

Mechanical properties

Interchangeability (dB): ≤ 0.1

Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)

Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)

The high temperature ≤ 0.2dB (+85 ° C for 50 hours)

Low temperature ≤ 0.2dB (-40 ° C for 50 hours)

Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)

Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)

Application:

Signal transmission and data transmission

Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems

Fiber optic test equipment / instrumentation

Optical fiber CATV (cable television), optical fiber sensors

Fiber-optic broadband-home, FTTH fiber to the home

Fiber optic patch panels, rack and wall mount fiber optic wiring unit

Ordering Options:

Type:

* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.

* Ferrule endface: PC,UPC,APC,etc.

* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.

* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.

* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
