| Brand Name: | NEW LIGHT |
| MOQ: | 10pcs |
| Price: | Negoatiate |
| Packaging Details: | 1 pcs per pack |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |

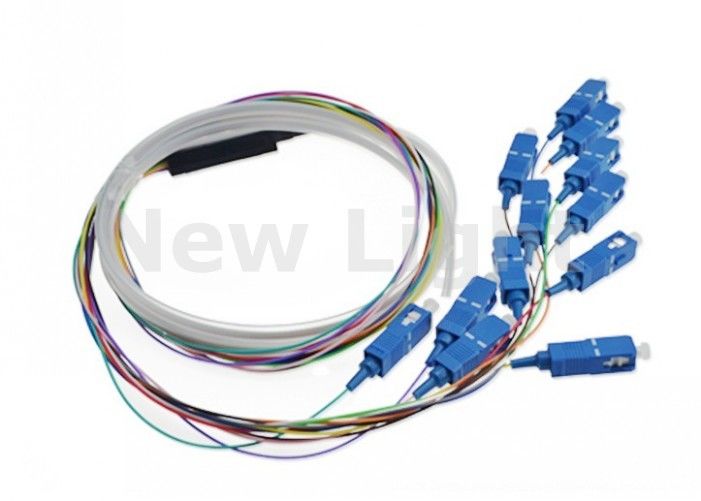

Data transmission networks use SC UPC 12 core fiber pigail 0.9mm SC 12 core sector pigtail
Introduction:
fiber optic patch cord
1, FC,SC,LC,ST
2, PVC,LSZH sheath
3. PC,UPCAPC polishing
4. SM,MM,SX,DX optional
LC/SC/FC/ST UPCAPC fiber optic patch cord SM&MM
Availabilities:
- Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
- Simplex and Duplex assemblies available
- Singlemode and multimode available
- PC, UPC andAPC polishing available
- PVC and LSZH outer sheath.
- Fiber type: 9/125um, 50/125um, 62.5/125um., OM3
- Fiber optic OD: 0.9mm, 3.0mm, 2.0mm
- Core type: SX, DX
- 0.9mm, 2.0mm and 3.0mm cable size.
- Hybrid patch cords are available upon request
- Fan-out available (Ribbon type / bundle type)
- Pigtail available
- Loopback available
- Customized lengths upon request
- 100% tested before shipping
Applications:
-Telecommunication networks
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications
Specifications:
-Singlemode:
Insertion Loss: <=0.3dB
Return Loss (R. L) UPC>=50dBAPC>=60dB
Working Temp. Range(degree. C): -40~80º C
-Multimode:
Insertion Loss: PC<=0.3dB
Working Temp. Range(degree. C): -40~80º C
Ordering Options:
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
Type:
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
|
