Blue Color MPO - MPO Fiber Cable Optical Fiber Patch Cord PVC / LSZH Multi Mode

Brand Name:	New Light
Model Number:	MPO
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag +Carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE,ISO,RoHS

Material:

PVC/LSZH

Color:

Blue/orange/yellow /purple

Mode:

Single / Multi Mode

Delivery Time:

2 Days After Receive Payment

Production:

500 /day

Length:

As Your Requirement

Shipping Term:

By Sea Or Air

3D Test:

100%

Fiber Core:

8 Core /12 Core /24 Core /48 Core

Insert Loss:

≤0.35dB

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

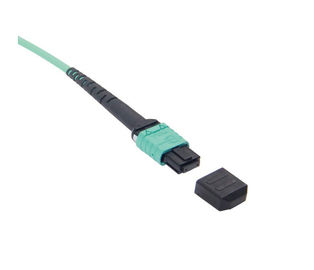

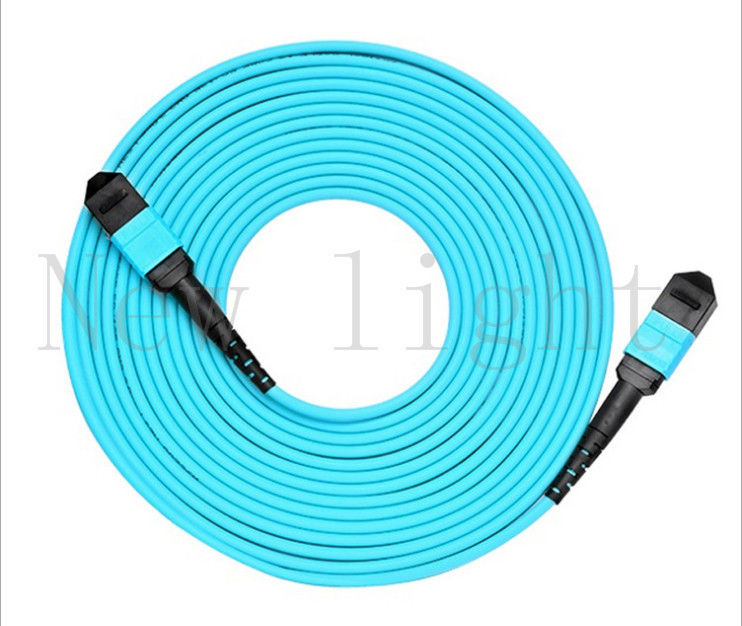

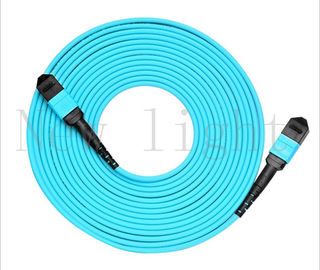

MPO-MPO blue color Optical fiber patch cord PVC/LSZH

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.

It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.

The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.

Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.

Applications

1.Data communication network
2.Optical system access network
3.Storage area network fiber channel
4.High density architectures

Features and benefits

1.Utilize MPO/MTP connectors
2.Rapid deployment
3.Factory terminated
4.100% tested (test data supplied)
5.High-density cable
6.Optimized performance
7.Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
8.MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Technical Parameter

Model		SM	MM
Connector A:MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

Fiber Color Code
Blue Color MPO - MPO Fiber Cable Optical Fiber Patch Cord PVC / LSZH Multi Mode 0

Delevery and payment :

L/C , T/T . western union , paypal , moneygram . 30% deposit in advance , 70% balance paid before delivery
