Product Details:
|
| Material: | PVC/LSZH | Color: | Blue/orange/yellow /purple |
|---|---|---|---|
| Mode: | Single / Multi Mode | Delivery Time: | 2 -7 Working Days After Receive Payment |
| Connector Type: | FC/ ST / SC / LC /MPO / MTP / MU/ MTRJ E2000 | Length: | As Your Requirement |
| Shipping Term: | By Sea Or Air | Cable Diameter: | 0.9/2.0/3.0mm |
| Packing: | OPP Bag + Carton Box | Insert Loss: | ≤0.3dB |
| Fiber Type: | G652D / G657A1 / G657A2 / OM1/ OM2/ OM3 /OM4 | Payment Term: | T/T , 30% Deposit , Balance Paid Before Delivery |
| High Light: | duplex fiber patch cord,sc sc fiber patch cord |
||
Description

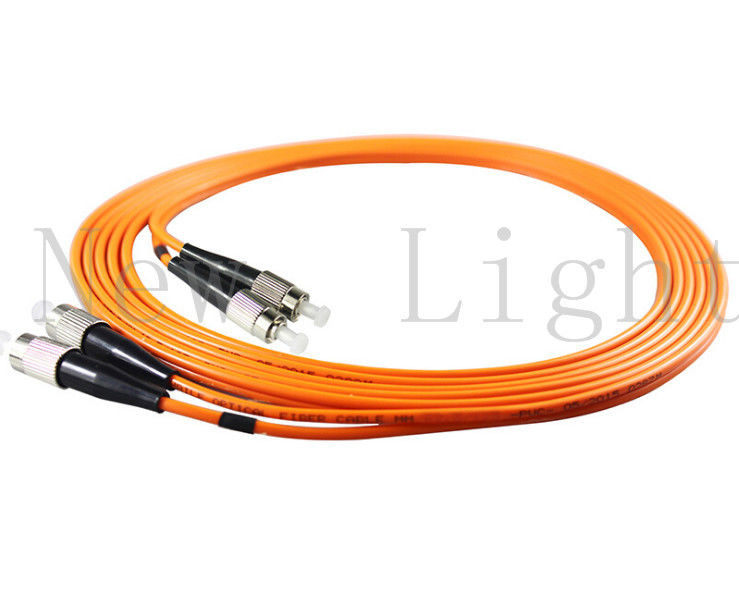

FC - FC optical fiber patch cord multi mode PVC / LSZH 0.9 / 2.0 / 3.0 mm
Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.
Applications
Features
Patch cord information
1. Connector type SC / LC / ST / FC/ MPO /MU / MTRJ / SMA
2. Fiber Type : Φ 0.9/1.8 /2.0/3.0mm ,
Fiber type : Single mode G652D(G657A1/G657A2 )
Multi-mode 62.5/125 OM1
50/125 OM2 / OM3-150 / OM3-300 / OM4
Coating Material: PVC / LSZH
3. Length: can be any length as your requirements
4. Cable color : 2.0/3.0 mm : yellow / orange / aqua / purple
0.9mm : blue / green / brown / grey / white / red / black / pink / yellow / purple / pink / aqua
5. Core type : simplex / duplex / 4 cores / 6 cores / 8 cores / 12cores / 24cores
Specifications
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.25dB(PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
| Return Loss(dB) | ≥50dB(PC/UPC) ≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
Company Introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Production
Quality control
Packing
preferred carrier, please notify us in advance.
Delivery and payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
More products
How to place order
1.Connector type : SC / FC / LC / ST / MPO / MU / MTRJ / E2000
2.Mode type : single mode / multi mode
3.Cable diameter : 0.9 / 2.0 / 3.0 mm
4.Coating material : PVC / LSZH
5.Core type : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6.Cable type : G652D / G657A1 / G657A2 / OM1 / OM2 / OM3-150 / OM3-300 / OM4
7.Patch cord length : according to your requirements
