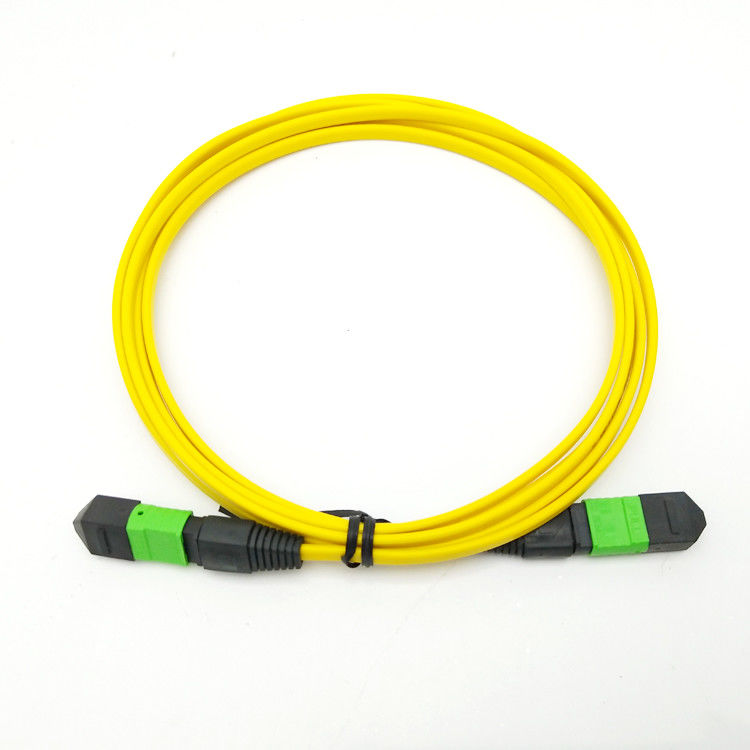

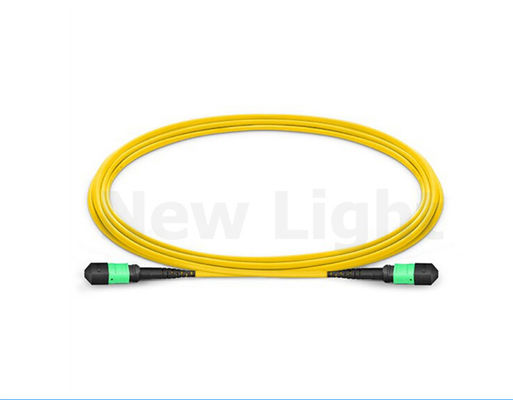

MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M

MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M

    • MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M
    • MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M
  • MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: MPO-MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: OPP bag + Carton box
    Payment Terms: L/C, T/T, Western Union, MoneyGram , Paypal
    Supply Ability: 500 pcs per day
    Contact Now
    Detailed Product Description
    Material: PVC / LSZH Connector Type: MPO / MTP
    Mode: Single / Multi Mode Delivery Time: 2 Days After Receive Payment
    Production: 500 Pcs Per Day Length: As Your Requirement
    Shipping Term: By Sea Or By Air Fiber Cord: 8 Core / 12 Core / 32 Core
    Products Name: MPO MTP Cable





    MPO-MPO female MPO MTP cable SM 12 core patch cord 10M





    Product description



    MPO MTP cable is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.



    MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 6, 8, 12. They use Precision molded MT ferrules, together with metal guide pins and precise housing ensuring fiber alignment when mating. MPO/MTP assembled to ribbon or bare ribbon connectors with push-pull latching.





    Features:



    High Precision pins for fiber alignment.

    UPC and APC available

    Choices of different cable structure to cater for different installation needs

    Available in SM (9/125), MM (50 or 62.5/125), OM3 and OM4 fiber types

    Available in 8/12/24 -fiber

    Corning fiber is available for selection

    Compliance with Telcordia GR-1435-CORE and RoHS





    The two polarity methods Type A and Type B are used to guarantee the right bi-directional allocation.

    Specification



        Multimode Singlemode



    IL

    MPO

    Single max :0.35db (L)

    Single Max : 0.60db (G)

    Single max :0.35db(L)

    Single max :0.75db (G)

    LC

    MAX :0.10dB(L)

    MAX :0.15 db (G)

    Max:0.3db



    RL

    MPO >20DB >60DB (8 degree Angle Polish )
    LC >30DB >50 db (UPC) >60DB(APC)



    Mechanical

    MPO <0.2DB, 200 times insertion
    LC <0.2DB, 500 times insertion



    Enviromental

    working temperature -20~ +60 'C
    storage temperature -40~ + 70'C
      Install temperature -5~ + 50'C





    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M







    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M





    Application:



    For installation in horizontal patch extension from consolidation point to the workstation outlets

    High Density Fiber Management

    DACS

    LAN/WAN Premises



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M





    Production



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M





    Quality Guarantee



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    Continuity Test



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M

    Packing & Labeling





    The package will be packed according to standard export requirements, customer satisfication is our target.
    Label printing : Customer logo or our brand are available
    Inner packing: 5pcs in one carton
    Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
    The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    Your may like



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    More products



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M







    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    MPO-MPO female MPO MTP cable SM 12 core patch cord yellow cable 10M



    FQA



    Q1.When can I get the price?

    A1:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



    Q2. Can you accept small order?

    A2:Yes, small order is available in our company. We support new project of our customers as we know business is always from small to big.Your sucess is my business.



    Q3. Can I order samples before placing the bulk order?

    A3:Yes, sample is certainly for your test before the bulk order. It is normal process, we always deal with other clients.



    Q4.What is your term of delivery?

    A4:We accept EXW, FOB, CIF, CFR etc. You can choose the one which is the most convenient or cost effective for you.

    Q5.What if there is quality problem when we get the goods?

    A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you ,Furthermore we will also take action to improve the quality in future.
