Product Details:
|
Material: | PVC / LSZH | Fiber Type: | G652D / G657A1 / G657A2 |
---|---|---|---|
Connector Type: | FC / ST / SC / LC / MPO / MU / MTRJ | Mode: | Single Mode |
Cable Core Type: | Simplex / Duplex | Cable Color: | Yellow |
Cable Diameter: | 0.9 Mm / 2.0mm / 3.0mm | Cable Length: | As Your Requirement |
Delivery Time: | 2-7 Working Days After Received Payment | Packing: | Opp Bag + Carton Box |
Warranty: | 3 Years | ||
Highlight: | duplex fiber patch cord,sc sc fiber patch cord |

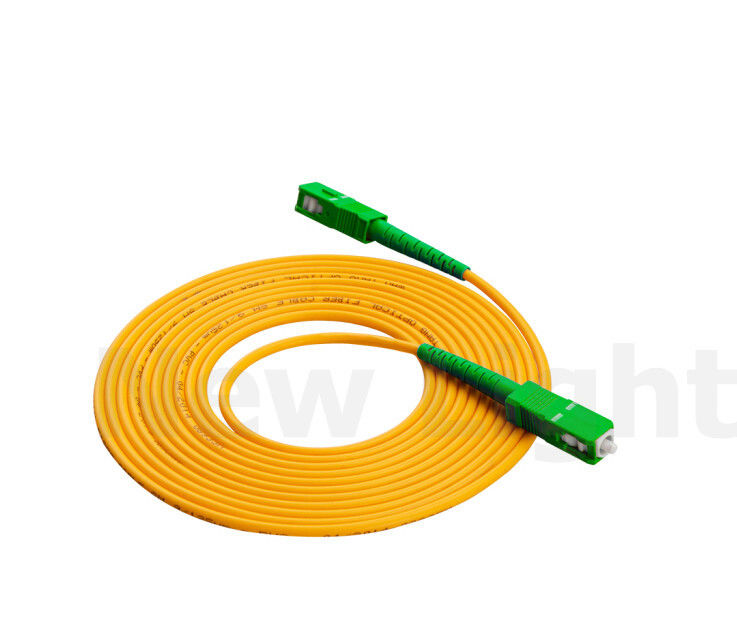

SC / APC Optic Fiber Patch Cord simplex single mode 3.0 diameter green connector
Product Description
Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end.It is available in both Single mode and multimode versions,come with a zirconia ceramic ferrule with pre-polished UPC or APC.
Features:
Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable
Applications
Specifications:
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.25dB(PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
Return Loss(dB) | ≥50dB(PC/UPC) ≥60dB(APC) |
≥40dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
*All values specified are with connectors. |
