MPO MTP Patch Cord
>
Optic Fiber MPO MTP Cable Patch Cord simplex / duplex , patch cable 8 core / 12 core

Optic Fiber MPO MTP Cable Patch Cord simplex / duplex , patch cable 8 core / 12 core

Brand Name: NEW LIGHT
Model Number: SC / FC / ST / LC / MPO / MTRJ / MU
MOQ: 1 pcs
Price: 0.1~100
Packaging Details: OPP bag + carton box
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
Shenzhen , China
Certification:
CE , ISO , RoHS
Product Name:
Optic Fiber MPO MTP Cable Patch Cord Simplex / Duplex , Patch Cable 8 Core / 12 Core
Material:
PVC / LSZH
Fiber Type:
G652D / G657A1 / G657A2 / OM1 / OM2 / OM3 / OM4
Connector Type:
FC / ST / SC / LC / MPO / MU / MTRJ
Mode:
Single Mode / Multi Mode
Cable Core Type:
Simplex / Duplex / 4core / 6 Core / 8 Core / 12 Core
Cable Color:
Yellow / Orange / Aqua/ Purple
Cable Diameter:
0.9 Mm / 2.0mm / 3.0mm
Cable Length:
As Your Requirement
Delivery Time:
2-7 Working Days After Received Payment
Packing:
Opp Bag + Carton Box
Payment Term:
T/T , 30% Deposit In Advance , 70% Balance Paid Before Delivery
Supply Ability:
500 pcs per day
Highlight:

mpo fiber cable

,

mpo fanout cable

Product Description



Optic Fiber MPO MTP Cable Patch Cord simplex / duplex , patch cable 8 core / 12 core



Product Description

Optic Fiber MPO MTP Cable Patch Cord simplex / duplex , patch cable 8 core / 12 core

MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
·
MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us.




Specification:

ItemSingle ModeMultimode
Insertion Loss≤0.2dB
Return Loss≥50dB(PC); ≥65dB(APC)
Repeat-ability≤0.1
Durability≤0.2dB typical change 1000matings
Interchangeability≤0.2dB
Operating Temperature- 40℃ to +85℃- 40℃ to +85℃





Ordering Options
ConnectorSC, FC, ST, LC, E2000, MPO, MU,MTRJ, etc.
FinishUPC, APC,PC; for MTRJ, Female, Male
Cable TypeSimplex, Duplex Straight, Duplex Reverse
FiberSM(G652), 62.5/125um, 50/125um, OM2, OM3,SM(G655)
Cable JacketRiser, Plenum, LSZH
Cable DiameterØ3.0mm, Ø2.0mm, Ø0.9mm, etc.
Cable LengthLength in meter




Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber


Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.


Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 0

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 1

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 2

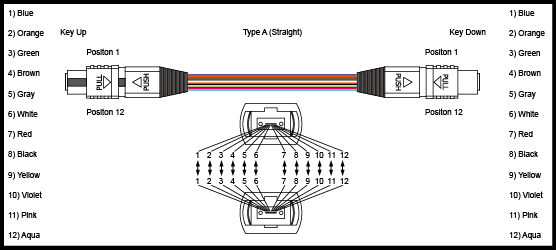

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

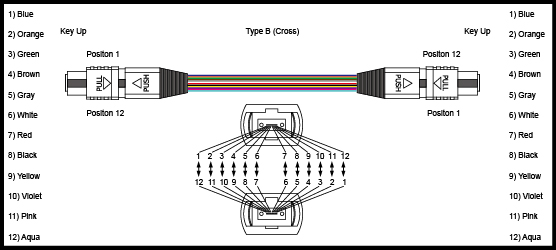

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

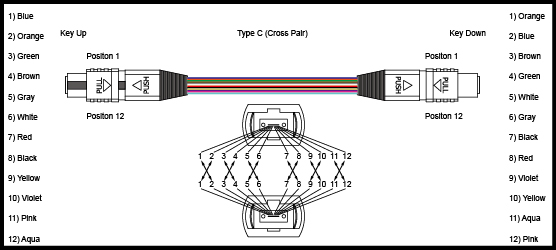

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable.

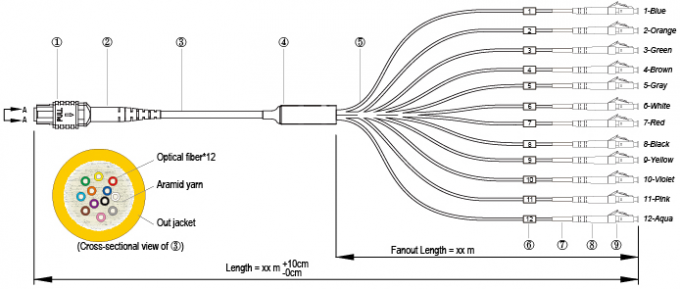

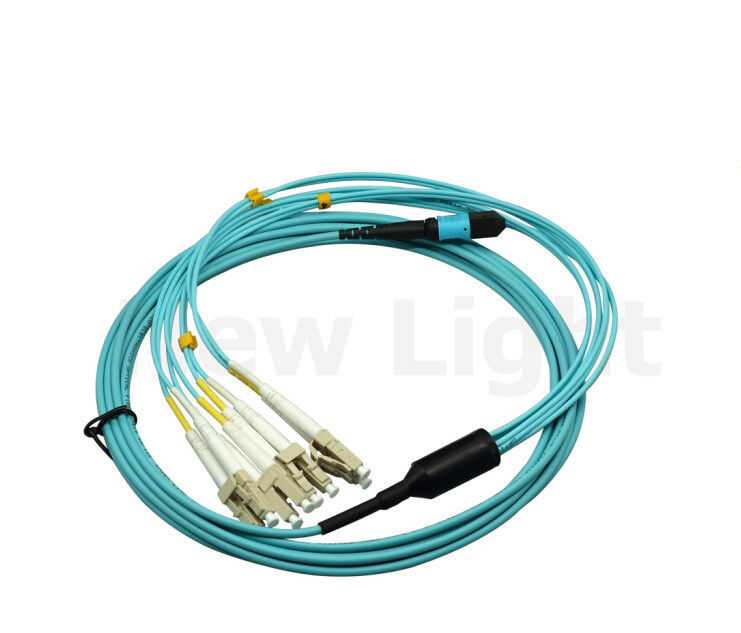

Fanout cable details
Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 3

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 4

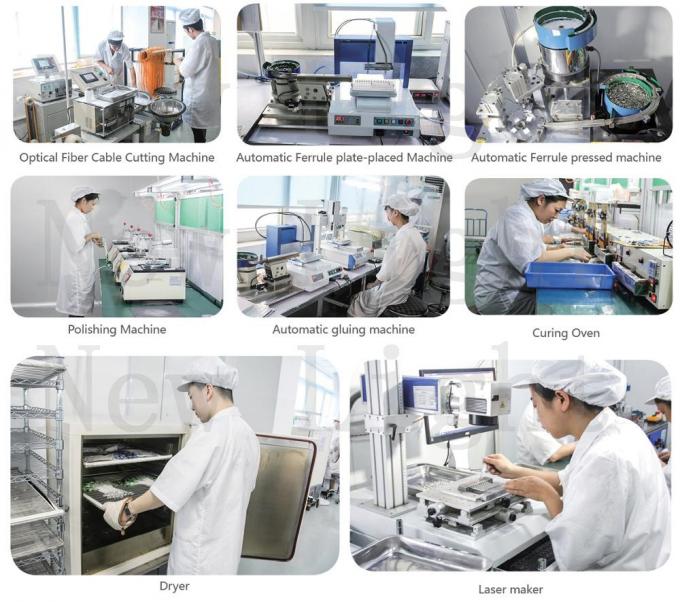

Production

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 5

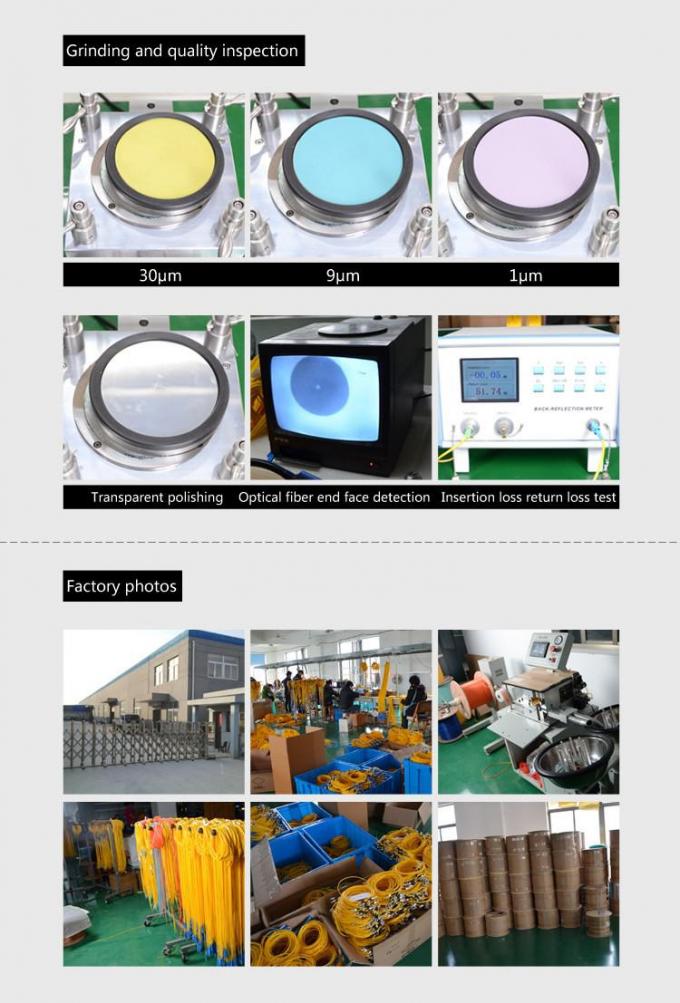

Grind

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 6

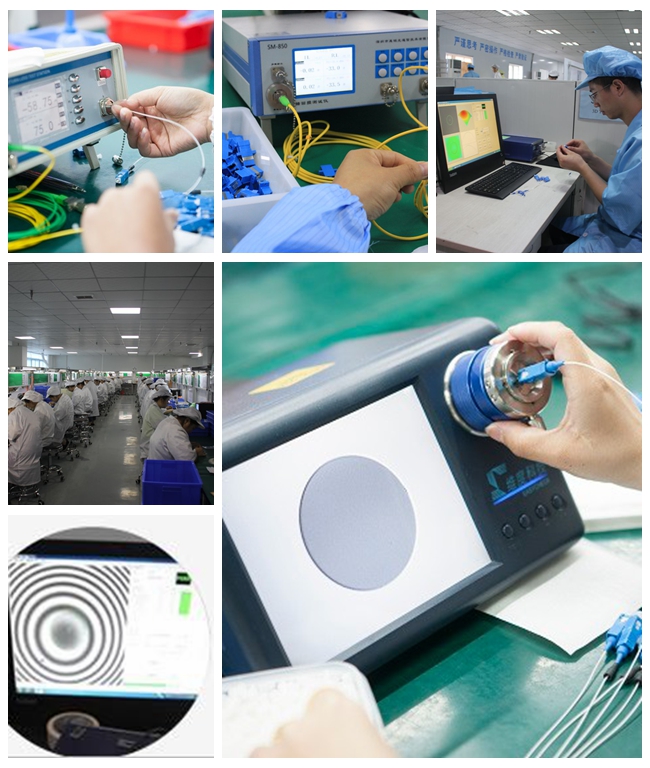

Quality control

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 7

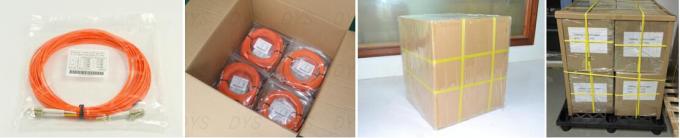

Packing

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 8




Delivery


Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 9


Payment term

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 10

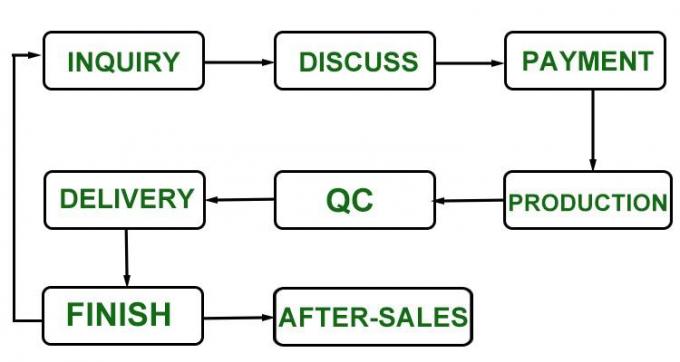

Our service

Optic Fiber  MPO MTP Cable  Patch Cord simplex / duplex  ,  patch cable 8 core / 12 core 11
