MPO MTP Patch Cord

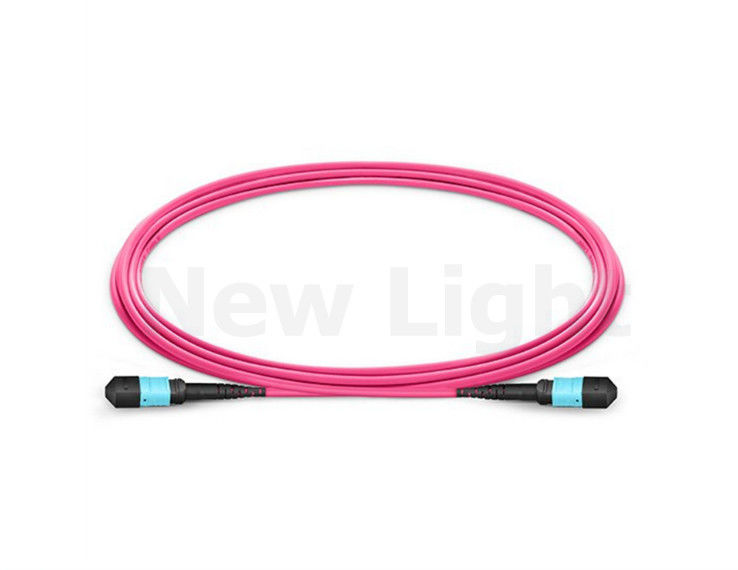

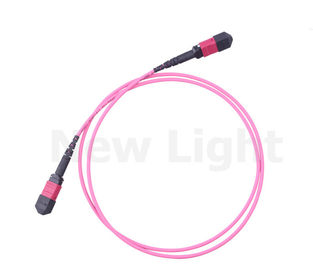

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable

Brand Name:	NEW LIGHT
Model Number:	MPO / MTP
MOQ:	1 pcs
Price:	0.1~100
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP Female

Material:

Mode Type:

Multi Mode

Core Type:

12 Core

Cable Color:

Magenta

Cable Diameter:

Mathed:

A Type

Insertion Loss:

≤ 0.5 DB ( Low Insertion Loss Can Be ≤ 0.3dB)

Return Loss:

≥25dB

Length:

Can Be Customized

OEM/ODM:

Acceptable

Package:

1pcs /bag OPP Bag + Carton Box

Cable Type:

Wavelength:

850/1300nm

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable

MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 8, 12 ,16 , 24 , 32 .It use Precision molded MT ferrules, together with metal guide pins and plastic ferrule and precise housing ensuring fiber alignment when mating. MPO/MTP assembled to ribbon or bare ribbon connectors with push-pull latching.

Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Features:

High Precision pins for fiber alignment.

UPC and APC available

Choices of different cable structure to cater for different installation needs

Available in SM (9/125), MM (50 or 62.5/125), OM3 and OM4 fiber types

Available in 8/12/24 -fiber

Corning fiber is available for selection

Compliance with Telcordia GR-1435-CORE and RoHS

Technical Parameter

Parameter

products name	5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable
mode type	multi mode
cable count	12 core ( can be 4/8/12/16/24/32 core )
Methed	A type
core type	OM4 ( OM1/OM2/OM3-150/OM3-300/OM4/OM5)
cable color	magenta ( can be customized according to your request )
cable diameter	3.0 ( can be 3.0 and customized diameter )
patch cord length	3 meter ( can be customized according to your request )
out jacket material	LSZH ( can be PVC or LSZH )
insertion loss	≤ 0.5dB ( low insertion loss can be ≤ 0.35dB )
return loss	≥25 dB
wave length	850/1300
core type	50/125um
connector type	female
connector color	Aqua / Magenta /beige are ok
ferrule material	plastic
operater temperature	-40~ +85℃
cable print	standard print ( can customized )
OEM/ODM	acceptable
warranty	3 years after delivery
Delivery time	2-15 working days ( according to your quantity )

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable 0

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable 1

Drawing

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable 2

Connector you can choose :

5M OM4 12 core female MPO / MTP - MPO optical fiber patch cord LSZH 3.0 magenta cable 3

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
