| Brand Name: | New Light |
| Model Number: | LC-LC |
| MOQ: | 1 pcs |
| Price: | can be negotiated |
| Packaging Details: | opp bag + carton box |
| Payment Terms: | T/T, Western Union, MoneyGram , paypal |
Optic Fiber Patch Cord Product Name:

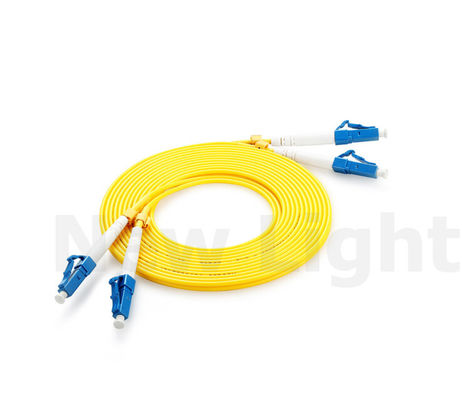

LC-LC connector single mode fiber optic cable 3.0mm lszh Duplex fiber yellow cable
Optic Fiber Patch Cord Description :
indoor single mode patch cord is yellow fiber cable . the diameter can be customized accoring to your request . normal diamater is 2.0/3.0mm . if you need other diameter cable , please let us know before we quote . and the MOQ of customized diameter cable at 1000 meters for one specification cable . otherwise , it can't be produced by machine .
The cable out jacket material can be PVC and LSZH .
patch cord connector can be any as your requirements , normal connectors we have : LC / SC / FC / ST / MPO / MTP / E2000 / MU / MTRJ / SMA .
New light optics technology provide wide degree flexibility on fiber pigtails, including single-mode, multimode and
10G 50/125um OM3 types,OM4 / OM5 type . simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers ,96 fibers ,and
so on.
These fiber pigtails and patch cord can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC
standards.
Optic Fiber Patch Cord Key Features
Optic Fiber Patch Cord Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Optic Fiber Patch Cord Connector Type:
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,black... |
Optic Fiber Patch Cord Connector Type :
Optic Fiber Patch Cord Application :
How To Place Order Optic Fiber Patch Cord :
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC blue color and APC green color ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core /48 core / 96 core or other specification
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements
FQA :
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 working days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide the sample for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
Packing for reference :
|
