Fiber Optic Splitter

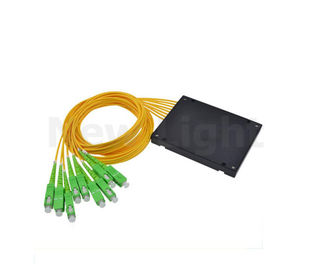

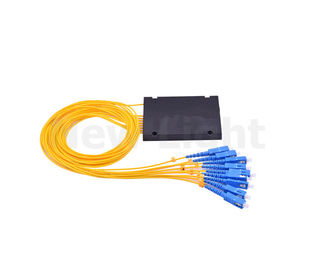

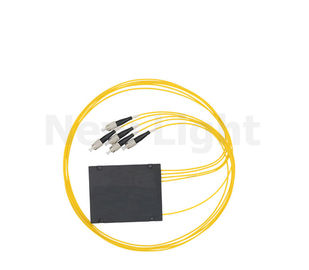

1.5 M 1:2 / 4 / 6 / 8 / 16 / 32 SC / APC Fiber Optic Splitter WDM single mode

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1.5 M 1:2 / 4 / 6 / 8 / 16 / 32 SC / APC Fiber Optic Splitter WDM single mode

Brand Name:	New Light
Model Number:	SC APC
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC APC

Cable Material:

Fiber Type:

G652D

Mode Type:

Single Mode

Core Type:

1X8 Core

Cable Diameter:

2.0 Mm

Cable Length:

Can Be Customized

Insertion Loss:

≤ 10.2dB

Return Loss:

≥50dB

Input Length:

1meter

Output Length:

1meter

Cable Color:

Yellow

Core Type:

9/125um

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

1.5 M 1:2 / 4 / 6 / 8 / 16 / 32 SC / APC Fiber Optic Splitter WDM single mode

Applications:

Ø LAN, WAN and Metro Networks

Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net

Features:

Low Insertion los
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability

Parameters	1*4	1*8	1*16	1*32	1*64	1*64
Operation Wavelength(nm)	1260-1650					1310±40 1490±10 1550±40
Insertion Loss(dB)	≤7.4	≤10.2	≤13.9	≤17.2	≤21.5	≤20.1
PDL	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5	≤0.3
Uniformity of I.L	≤0.8	≤1.0	≤1.4	≤1.6	≤2.0	≤1.6
Return Loss(dB)	≥55
Directivity(dB)	≥55
Working/Storage Temperature(℃)	-40~+85

Parameters	2*4	2*8	2*16	2*32	2*64	2*64
Operation Wavelength(nm)	1260-1650					1310±40 1490±10 1550±40
Insertion Loss(dB)	≤7.6	≤11.0	≤134.8	≤17.9	≤21.5	≤20.1
PDL	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5
Uniformity of I.L	≤0.8	≤1.0	≤1.4	≤1.4	≤1.6	≤2.0
Return Loss(dB)	≥55
Directivity(dB)	≥55
Working/Storage Temperature(℃)	-40~+85

Advantage:

ALL PLC was complianced with Telcordia GR-1209-CORE & Telcordia GR-1221-CORE
We provide 2 year quality assurance
We accept customized

New Light (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Applications

CATV;
Active device termination;
Telecommunication networks;
Metro;
Local Area Networks;
Data processing networks;
Test equipment;
Premise installation;
Wide Area Networks

1.5 M 1:2 / 4 / 6 / 8 / 16 / 32 SC / APC Fiber Optic Splitter WDM single mode 0

Connector type :

connoctor type	SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA....
Cables	PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored
Color	yellow,gray,sky bule ,orange,white,bla

How to order

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
