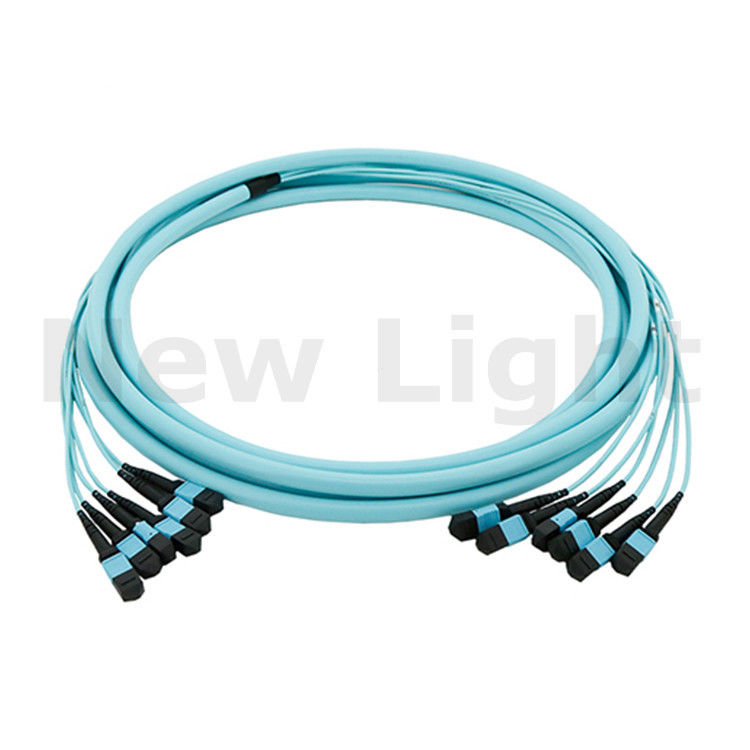

MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord

MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord

    • MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord
    • MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord
    • MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord
  • MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord

    Product Details:

    Place of Origin: Shenzhen , China
    Brand Name: New Light
    Certification: CE , ISO , RoHS
    Model Number: MPO / MTP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-7 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability: 500 pcs per day
    Contact Now
    Detailed Product Description
    Connector Type: MPO / MTP Material: PVC / LSZH
    Mode Type: Single / Multi Mode Core Type: 8 / 12 / 24 Core
    Cable Color: Yellow / Aqua / Purple Length: As Your Requirements
    Certificate: CE , ISO ,RoHS Delivery Time: 2-7 Working Days After Receive Payment
    Production Ability: 500pcs / Day Payment Term: T/T / Paypal , 30 % Deposit In Advance







    Description :





    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





    MPO optical fiber patch cord, Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard





    Application



    CATV

    Active dvice termination

    Telecommunication networks

    Metro

    Local Area Networks(LANs)

    Data Processing networks

    Test Equipment

    Premise installations.

    Wide Area Networks(WANs)





    Feature

    Low insertion loss and back reflection loss

    Good echangeabilityGood Durability

    High temperature stability

    Standard: Telcordia GR-326-CORE





    Specification



    Mode SM MM
    Polish UPC/APC PC
    Insertion Loss

    Typical ≤0.2dB

    Maximum ≤0.3dB

    ≤0.25dB
    Return Loss

    ≥50DB(PC)

    ≥60DB(APC)

    ≥30dB
    Interchangeability ≤0.2dB
    Repeatability ≤0.1dB
    Durability ≤0.2dB typical change, 1000 matings
    Tensile Strength > 10kg
    Temperature ≤0.2dB (-40+85 sustain 100 hours)
    Humidity ≤0.2dB (+25+65 93 R.H.100 hours)





    Ordering options



    Boot (cable size) Boot Color Fiber Type Cable number Ferrule Length

    0.9mm

    2.0mm

    3.0mm

    Black

    Biege

    Blue

    Gray

    White

    Yellow

    9/125um SM

    50/125um MM

    62.5/125um MM

    OM3

    OM4

    Simplex

    Duplex

    Multi-fiber

    PC

    APC

    Customized







    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





    When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector



    is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the



    left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left



    side of connector A will be output on the right side of connector B.



    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





    Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis



    GEZHI Assembly Structure Illustration:





    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord









    It have male and female connector :



    Male with PIN   , female without PIN



    MPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cordMPO - MPO male / female fan out MPO MTP cable single mode optical fiber patch cord





                   Female connector                                                               Male connector
