Good price online

products details

Home > Products >
MPO MTP Cable
>

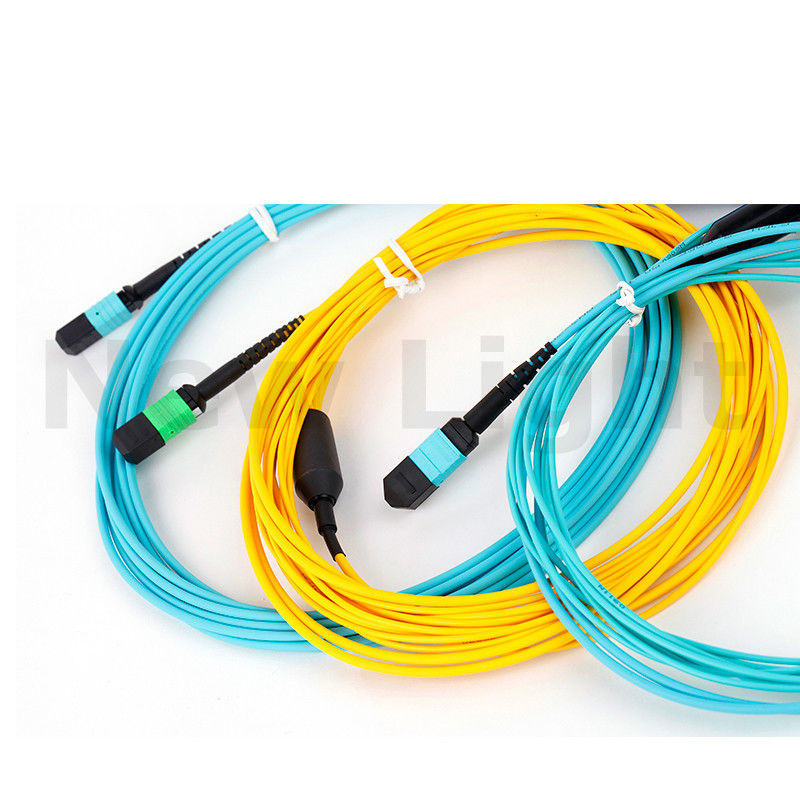

MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
Name
  • Name
  • Name
  • Name
  • Name

MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord

Brand Name: New Light
Model Number: MPO / MTP
MOQ: 1~10000
Price: 6~15
Packaging Details: opp bag + carton box
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen , China
Certification:
CE , ISO , RoHS
Connector Type:
MPO / MTP
Material:
PVC / LSZH
Mode Type:
Single / Multi Mode
Core Type:
8 / 12 / 24 Core
Cable Color:
Yellow / Aqua / Purple
Length:
As Your Requirements
Certificate:
CE , ISO ,RoHS
Delivery Time:
2-7 Working Days After Receive Payment
Production Ability:
500pcs / Day
Payment Term:
T/T / Paypal , 30 % Deposit In Advance
Supply Ability:
500 pcs per day
Highlight:

mpo fiber cable

,

mpo fanout cable

Product Description




Description :


MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord



Product Description

MPO/MTP fiber patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.


Features

  • Low insertion loss, high return loss
  • High precision, the precision of the MT guide pin and guide hole to ensure the accuracy of optical alignment
  • Materials meet the ROSH requirements


Advantages

  • Stable high quality ensured by imported production and test equipments:EXFO IL&RL Tester / Domaille Grinding Machine / SENKO 3D Interferometer
  • Pretty high return loss: ≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution




    Application

    • Data center infrastructure
    • Storage area network
    • Emerging 40 & 100Gps Protocols
    • Parallel optics
    • Enterprise network cabling systerm


    Technical Parameter


    ItemTechnical Parameters
    ConnectorMPO (F or M)MPO (F or M)
    Operation Temperature-40°C ~ +80°C
    Storage Temperature-40°C ~ +85°C
    Insertion Loss

    SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
    MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);

    Return LossSM:≥60dB; MM:≥35dB
    The MPO end typeMale: with guide pin; Female: without guide pin
    Fiber count8,12&24 MT fiber
    Connector type of the other endMPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
    Fiber modeSingle-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
    Fiber cable type250um ribbon fiber,ribbon cable,Bundle fiber optic cable




    Ordering options


    Boot (cable size)Boot ColorFiber TypeCable numberFerruleLength

    0.9mm
    2.0mm
    3.0mm

    Black
    Biege
    Blue
    Gray
    White
    Yellow

    9/125um SM
    50/125um MM
    62.5/125um MM
    OM3
    OM4

    Simplex
    Duplex
    Multi-fiber

    PC
    APC

    Customized





    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 0


    When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector

    is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the

    left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left

    side of connector A will be output on the right side of connector B.

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 1


    Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis

    GEZHI Assembly Structure Illustration:


    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 2


    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 3


    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 4




    It have male and female connector :

    Male with PIN   , female without PIN

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 5MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 6


                   Female connector                                                               Male connector





    More pictures :

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 7
    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 8


    Production department :
    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 9


    Quality control :

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 10



    Packing :

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 11



    Delivery :

    MPO / MTP - MPO / MTP male / female MPO MTP cable single mode patch cord 12


    Payment :

    T/T , L/C ,western union , paypal , moneygram
