MPO / MTP - MPO / MTP female MPO fiber cable single mode optical fiber patch cord

MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord
MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord

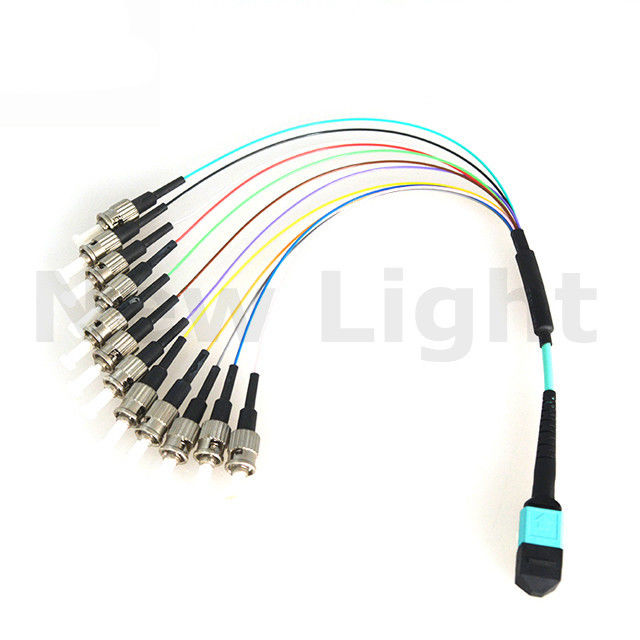

Large Image :  MPO / MTP - MPO / MTP female MPO fiber cable single mode optical fiber patch cord

Product Details:
Place of Origin: Shenzhen , China
Brand Name: New Light
Certification: CE , ISO , RoHS
Model Number: MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability: 500 pcs per day

MPO / MTP - MPO / MTP female MPO fiber cable single mode optical fiber patch cord

Description
Connector Type: MPO / MTP Material: PVC / LSZH
Mode Type: Single / Multi Mode Core Type: 8 / 12 / 24 Core
Cable Color: Yellow / Aqua / Purple Length: As Your Requirements
Certificate: CE , ISO ,RoHS Delivery Time: 2-7 Working Days After Receive Payment
Production Ability: 500pcs / Day Payment Term: T/T / Paypal , 30 % Deposit In Advance
High Light:

mpo fiber cable

,

mpo fanout cable




Description :


MPO / MTP - MPO / MTP female MPO MTP cable single mode optical fiber patch cord



Product Description

MPO optical fiber patch cord, Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard


Features


Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Standard: Telcordia GR-326-CORE


Advantages

  • Stable high quality ensured by imported production and test equipments:EXFO IL&RL Tester / Domaille Grinding Machine / SENKO 3D Interferometer
  • Pretty high return loss: ≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution




    Application

    • Data center infrastructure
    • Storage area network
    • Emerging 40 & 100Gps Protocols
    • Parallel optics
    • Enterprise network cabling systerm




    Specification

    ModeSMMM
    PolishUPC/APCPC
    Insertion Loss

    Typical ≤0.2dB
    Maximum ≤0.3dB

    ≤0.25dB
    Return Loss

    ≥50DB(PC)
    ≥60DB(APC)

    ≥30dB
    Interchangeability≤0.2dB
    Repeatability≤0.1dB
    Durability≤0.2dB typical change, 1000 matings
    Tensile Strength> 10kg
    Temperature≤0.2dB (-40+85 sustain 100 hours)
    Humidity≤0.2dB (+25+65 93 R.H.100 hours)



    Ordering options


    Boot (cable size)Boot ColorFiber TypeCable numberFerruleLength

    0.9mm
    2.0mm
    3.0mm

    Black
    Biege
    Blue
    Gray
    White
    Yellow

    9/125um SM
    50/125um MM
    62.5/125um MM
    OM3
    OM4

    Simplex
    Duplex
    Multi-fiber

    PC
    APC

    Customized





    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 0


    When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector

    is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the

    left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left

    side of connector A will be output on the right side of connector B.

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 1


    Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis

    GEZHI Assembly Structure Illustration:


    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 2


    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 3


    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 4




    It have male and female connector :

    Male with PIN   , female without PIN

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 5MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 6


                   Female connector                                                               Male connector





    More pictures :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 7
    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 8


    Production department :
    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 9


    Quality control :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 10



    Packing :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 11



    Delivery :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 12


    Payment :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 13


    How to place order :

    MPO / MTP  -  MPO / MTP female MPO fiber cable single mode optical fiber patch cord 14
