Product Details:
|
| Connector Type: | MPO / MTP | Material: | PVC / LSZH |
|---|---|---|---|
| Mode Type: | Single / Multi Mode | Core Type: | 8 / 12 / 24 Core |
| Cable Color: | Yellow / Aqua / Purple | Length: | As Your Requirements |
| Certificate: | CE , ISO ,RoHS | Delivery Time: | 2-7 Working Days After Receive Payment |
| Production Ability: | 500pcs / Day | Payment Term: | T/T / Paypal , 30 % Deposit In Advance |
| Highlight: | mpo fiber cable,mpo fanout cable |
||
Description :

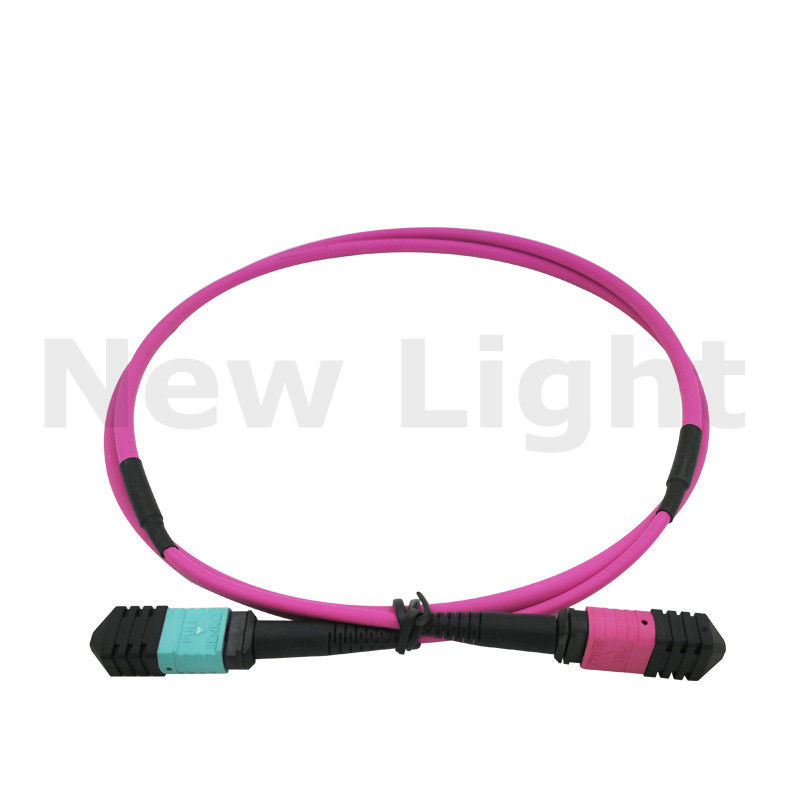

1 m MTP - MTP male / female MPO MTP cable multi mode OM4 optical fiber patch cord
Description:
A patch cord is optical cable used to connect ("patch-in") one electronic or optical device to another for signal routing.
Application:
1. Gigabit Ethernet
2. Telecommunication Networks
3. Active Device Termination
4. Video, Industrial, Multimedia,Military
5. Premise Installations
Characteristics:
1. Simplex and duplex connector available
2. High precision of mechanical dimensions.
3. Good exchange ability and good durability;
5 Fan-out Available, Pigtail Available, Various
Boot(cable) Size Available
Specification:
| Item | Single Mode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | ≥50dB(PC); ≥65dB(APC) | |
| Repeat-ability | ≤0.1 | |
| Durability | ≤0.2dB typical change 1000matings | |
| Interchangeability | ≤0.2dB | |
| Operating Temperature | - 40℃ to +85℃ | - 40℃ to +85℃ |
| Ordering Options | |
| Connector | SC, FC, ST, LC, E2000, MPO, MU,MTRJ, etc. |
| Finish | UPC, APC,PC; for MTRJ, Female, Male |
| Cable Type | Simplex, Duplex Straight, Duplex Reverse |
| Fiber | SM(G652), 62.5/125um, 50/125um, OM2, OM3,SM(G655) |
| Cable Jacket | Riser, Plenum, LSZH |
| Cable Diameter | Ø3.0mm, Ø2.0mm, Ø0.9mm, etc. |
| Cable Length | Length in meter |
Ordering options
| Boot (cable size) | Boot Color | Fiber Type | Cable number | Ferrule | Length |
0.9mm | Black | 9/125um SM | Simplex | PC | Customized |
When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector
is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the
left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left
side of connector A will be output on the right side of connector B.
Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis
GEZHI Assembly Structure Illustration:
It have male and female connector :
Male with PIN , female without PIN
Female connector Male connector
