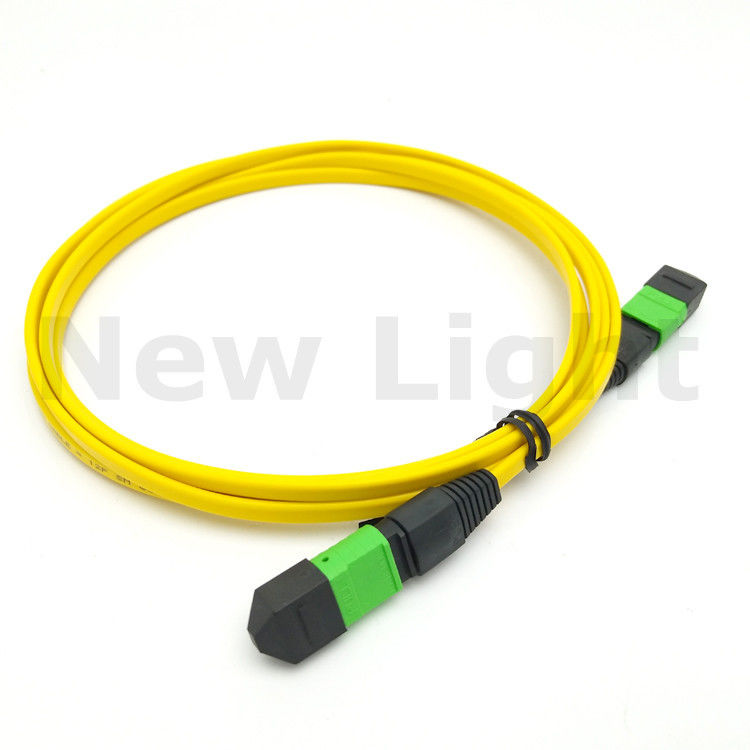

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord

Brand Name:	New Light
Model Number:	MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	opp bag + carton box
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP

Material:

PVC / LSZH

Mode Type:

Single / Multi Mode

Core Type:

8 / 12 / 24 Core

Cable Color:

Yellow / Aqua / Purple

Length:

As Your Requirements

Certificate:

CE , ISO ,RoHS

Delivery Time:

2-7 Working Days After Receive Payment

Production Ability:

500pcs / Day

Payment Term:

T/T / Paypal , 30 % Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo fanout cable

Product Description

Description :

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord

Product Description

MPO/MTP fiber patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.

Features

Low insertion loss, high return loss
High precision, the precision of the MT guide pin and guide hole to ensure the accuracy of optical alignment
Materials meet the ROSH requirements

Advantages

Stable high quality ensured by imported production and test equipments:EXFO IL&RL Tester / Domaille Grinding Machine / SENKO 3D Interferometer
Pretty high return loss: ≥45dB
5-year Experience R&D Team
Customized Production and Service
40G/100G Data Center Solution

Specification:

Item	Single Mode	Multimode
Insertion Loss	≤0.2dB
Return Loss	≥50dB(PC); ≥65dB(APC)
Repeat-ability	≤0.1
Durability	≤0.2dB typical change 1000matings
Interchangeability	≤0.2dB
Operating Temperature	- 40℃ to +85℃	- 40℃ to +85℃

Ordering Options
Connector	SC, FC, ST, LC, E2000, MPO, MU,MTRJ, etc.
Finish	UPC, APC,PC; for MTRJ, Female, Male
Cable Type	Simplex, Duplex Straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3,SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	Ø3.0mm, Ø2.0mm, Ø0.9mm, etc.
Cable Length	Length in meter

Ordering options

Boot (cable size)

Boot Color

Fiber Type

Cable number

Ferrule

Length

0.9mm

2.0mm

3.0mm

Black

Biege

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

APC

Customized

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 0

When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector

is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the

left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left

side of connector A will be output on the right side of connector B.

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 1

Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis

GEZHI Assembly Structure Illustration:

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 2

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 3

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 4

It have male and female connector :

Male with PIN , female without PIN

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 5

Female connector Male connector

More pictures :

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 7

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 8

Production department :

Quality control :

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 10

Packing :

Delivery :

Payment :

1 m MTP - MTP male / female MPO MTP cable single mode fiber patch cord 13
