Fiber Optic Patch Panel

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel

Brand Name:	New Light
Model Number:	MPO / MTP - LC / SC / FC / ST
MOQ:	1~10000
Price:	10~100
Packaging Details:	foam + carton box
Payment Terms:	L/C, , T/T, Western Union, MoneyGram , paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE / ISO / RoHS

Material:

Stainless Steel

Application:

FTTH / FTTB/ FTTX Network

Operating Temperature:

-20° ~ +80 °

Max Capacity:

144 Cores

Suitable Adaptor:

LC / SC / ST / FC / MPO

Size:

19 Inch

OEM/ ODM:

Acceptable

Deliery Time:

2-10 Working Days After Receive Payment

Payment Method:

T/T , Paypal , Western Union , Money Gram

Supply Ability:

2000 pcs per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

Description

96 core LC fiber optical distribution frame fiber optical FTTH distribution box

Product Description

· To integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency

· Light in weight, easy to install.

· Easy for installation and operation .

· 19' standard structure .

· Sliding tray design .

· Available for the installation of FC/SC/ST/LC adaptor.

MPO/MTP CASSETTES is made of cold rolled steel sheet or Aluminum, MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.

Application

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 0

Feature

1. 19" Standard rack mount

2. Material: SPCC cold rolled steel

3. Designed by full modulization:
A. Unit body have the funsion of optical fiber fusion, tray storing and distribution
B. the integrated fusion and distribution tray can be singly taken out to meet the demands for operation.

4. Optical cable, pigtail fiber and patch cords can be clearly managed,

5. Easy for installation of inlay,convenient to expand capacity,obliquity of adapter is 30 degree.

6. Ensure the bend radius of patch cord and avoid laser burning eyes.

7. FC, SC port is available for the integrated fusion and distribution tray

8. Two sides accommodate cable entry and exit

Specification

1. Under the general air pressure, 500VDC,insulation resistance≥1000MΩ;

2. The high voltage protection can undertake 3000VDC,no spark-through and flashover within 1 minutes.

3. Technical and quality grade reaches the ISO/IEC11801 requirement.

4. Working temperature-20°C~+55°C;

5. Working humidity≤95% (30°C);

6. Working atmospheric pressure 70~106KPa

Environmental temperature:	-20 - 80°C
Relative humidity:	<85%(when the temperature is below 30°C)
Atmosphere pressure:	70~106Kpa
Insulating resistance:	>2×104 MΩ/500VDC
Voltage-resistance strength:	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

More pictures

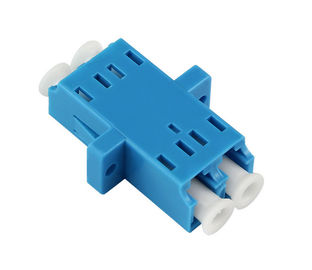

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 1

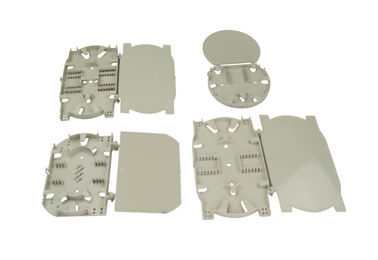

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 2

Our production department :

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 3

Quality control

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 4

Delivery and payment

Why Choose Us:

1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.

Our Service:

1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.

How to contact us

96 Core LC Fiber Optical Patch Panel FTTH Distribution Box Stainless Steel 6
