1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter

1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter
1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter

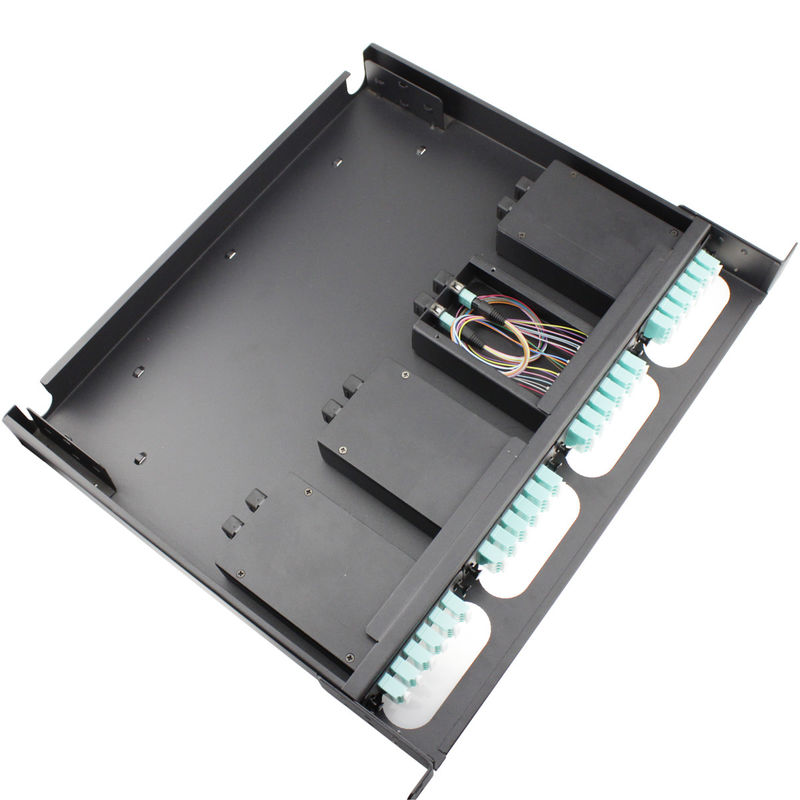

Large Image :  1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter

Product Details:
Place of Origin: Shenzhen, China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: MPO / MTP - LC / SC / FC / ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: foam + carton box
Delivery Time: 2-10 working days after received payment
Payment Terms: L/C, , T/T, Western Union, MoneyGram , paypal
Supply Ability: 2000 pcs per month

1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter

Description
Material: Stainless Steel Application: FTTH / FTTB/ FTTX Network
Operating Temperature: -20° ~ +80 ° Max Capacity: 144 Cores
Suitable Adaptor: LC / SC / ST / FC / MPO Size: 19 Inch
OEM/ ODM: Acceptable Deliery Time: 2-10 Working Days After Receive Payment
Payment Method: T/T , Paypal , Western Union , Money Gram
High Light:

odf fiber optic patch panel

,

fiber optic distribution box





Description





1U MPO / MTP male - LC Fiber Optic Distribution Frame multi mode OM3 1 meter





12-to-2/1 Migration Cassettes module convert a single lane of parallel optic signals into (12) discrete duplex LC channels. A single MTP/MPO connector running 40G/100G is breakout to 12 lanes of 10G/40G on duplex LC. Full loaded 2/1x MTP/MPO Male to 12 LC Duplex Plug-Play modules is designed for 10G/40G Ethernet, fiber channel and high speed data center.

MTP/MPO Breakout Cassette module feature 2/1 rear 12/24-fiber MTP/MPO ports connection and 12 duplex LC ports in front. This Base- 24 cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable, and it is ideal to deploy a Base-8 connectivity solution for use in main, horizontal and equipment distribution areas.

MPO/MTP Breakout Cassette modules is made of cold rolled steel sheet or Aluminum, MPO/MTP Cassette Modules provide secure transition between MPO/MTP and LC or SC discrete connectors. They are used to interconnect MPO/MTP backbones with LC or SC patching.

MTP/MPO Breakout Cassette module is the kind of module that allows for rapid deployment of high-density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Which is proved to be time and energy saving as well as cost-efficient? Moreover, it enables users to take the fibers brought by a trunk cable and distribute them to a duplex cable.

MTP/MPO cassette features optimized performance with low insertion losses and power penalties, high-density and MTP/MPO interface of superior optical and mechanical properties.



Features:

Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution

High-density and small design;

8 and 12 and 24 fiber versions – 4/6/12 LC (Duplex) / SC (Simplex) optical parts

Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.

Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance

Metallic shell with high strength protect the inner fibers effectively

Supports easy reconfiguration for moves, adds, and changes

Available for the installation of LC/SC adapter.





Optical Performance:





Fiber Count 24 Fiber Type Fiber Type



Front Connector Type



12x LC UPC Duplex



12x LC UPC Duplex

2x MTP UPC Base-12 (male)

1x MTP UPC Base-12 (male)

MTP Adapter

Key up to Key down

Key up to Key UP

LC Adapter LC DX SC footprint



LC DX SC footprint

SM: MTP≤0.35dB, LC≤0.2dB

MM: MTP≤0.35dB, LC≤0.2dB



Return Loss

SM: MTP≥60dB, LC≥50dB

MM: MTP≥20dB, LC≥20dB

Operating Temperature

0°C to 70°C

(32°F to 158°F)

Storage and Shipping Temperature -40°C to +75°C







More pictures





1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 0







1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 1





Our production department :





1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 2





Quality control



1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 3







Delivery and payment



1U Fiber Optic Distribution Frame MPO / MTP male - LC multi mode OM3 1 meter 4







Why Choose Us:


1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.



Our Service:


1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
