Product Details:
|
Material: | Stainless Steel | Application: | FTTH / FTTB/ FTTX Network |
---|---|---|---|
Operating Temperature: | -20° ~ +80 ° | Max Capacity: | 144 Cores |
Suitable Adaptor: | LC / SC / ST / FC / MPO | Size: | 19 Inch |
OEM/ ODM: | Acceptable | Deliery Time: | 2-10 Working Days After Receive Payment |
Payment Method: | T/T , Paypal , Western Union , Money Gram | ||
Highlight: | fiber optic cassette module,mtp casstte module |
Description

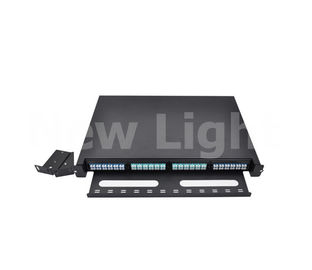

1U MPO / MTP male - LC Fiber Optic Distribution Frame multi mode OM3 1 meter
12-to-2/1 Migration Cassettes module convert a single lane of parallel optic signals into (12) discrete duplex LC channels. A single MTP/MPO connector running 40G/100G is breakout to 12 lanes of 10G/40G on duplex LC. Full loaded 2/1x MTP/MPO Male to 12 LC Duplex Plug-Play modules is designed for 10G/40G Ethernet, fiber channel and high speed data center.

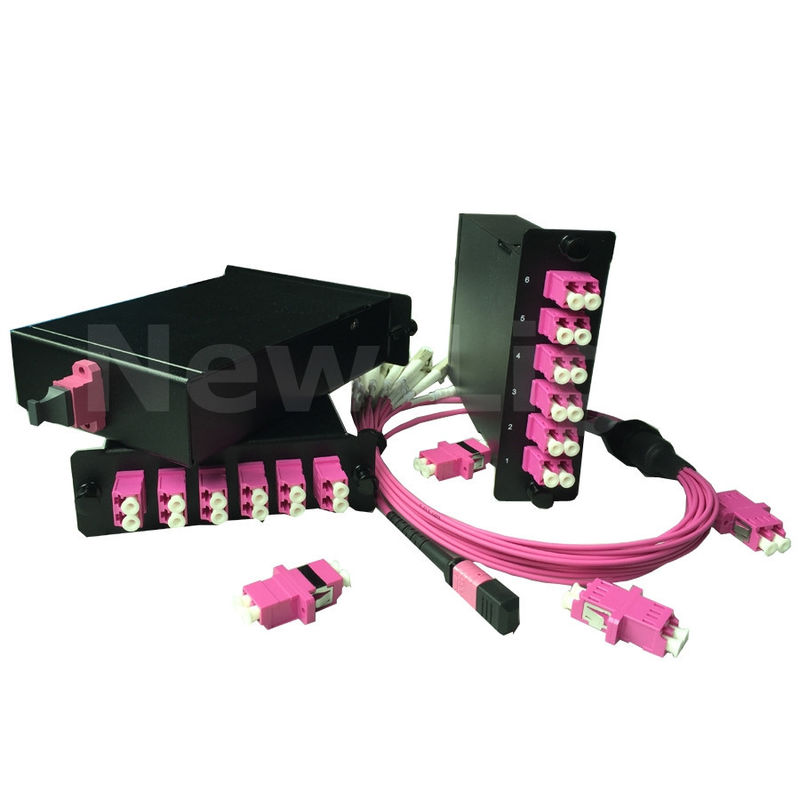

MTP/MPO Breakout Cassette module feature 2/1 rear 12/24-fiber MTP/MPO ports connection and 12 duplex LC ports in front. This Base- 24 cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable, and it is ideal to deploy a Base-8 connectivity solution for use in main, horizontal and equipment distribution areas.
MPO/MTP Breakout Cassette modules is made of cold rolled steel sheet or Aluminum, MPO/MTP Cassette Modules provide secure transition between MPO/MTP and LC or SC discrete connectors. They are used to interconnect MPO/MTP backbones with LC or SC patching.
MTP/MPO Breakout Cassette module is the kind of module that allows for rapid deployment of high-density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Which is proved to be time and energy saving as well as cost-efficient? Moreover, it enables users to take the fibers brought by a trunk cable and distribute them to a duplex cable.
MTP/MPO cassette features optimized performance with low insertion losses and power penalties, high-density and MTP/MPO interface of superior optical and mechanical properties.
Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution
High-density and small design;
8 and 12 and 24 fiber versions – 4/6/12 LC (Duplex) / SC (Simplex) optical parts
Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.
Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance
Metallic shell with high strength protect the inner fibers effectively
Supports easy reconfiguration for moves, adds, and changes
Available for the installation of LC/SC adapter.
Optical Performance:
Fiber Count | 24 | Fiber Type | Fiber Type |
Front Connector Type |
12x LC UPC Duplex |
12x LC UPC Duplex |
2x MTP UPC Base-12 (male) 1x MTP UPC Base-12 (male) |
MTP Adapter |
Key up to Key down Key up to Key UP |
LC Adapter | LC DX SC footprint |
LC DX SC footprint |
SM: MTP≤0.35dB, LC≤0.2dB MM: MTP≤0.35dB, LC≤0.2dB |
Return Loss |
SM: MTP≥60dB, LC≥50dB MM: MTP≥20dB, LC≥20dB |
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
Storage and Shipping Temperature | -40°C to +75°C |
