|Material:||Stainless Steel||Application:||FTTH / FTTB/ FTTX Network|
|Operating Temperature:||-20° ~ +80 °||Max Capacity:||144 Cores|
|Suitable Adaptor:||LC / SC / ST / FC / MPO||Size:||19 Inch|
|OEM/ ODM:||Acceptable||Deliery Time:||2-10 Working Days After Receive Payment|
|Payment Method:||T/T , Paypal , Western Union , Money Gram|
odf optical fiber distribution frame,
odf fiber optic patch panel

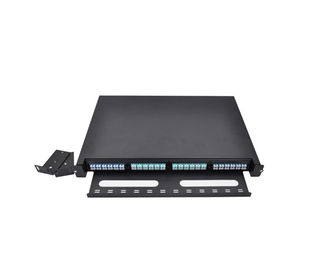

19 inch MPO / MTP male Fiber Optic Distribution Frame terminal distribution box
MPO/MTP Fiber Optical Patch Panels
· To integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency
· Light in weight, easy to install.
· Easy for installation and operation .
· 19' standard structure .
· Sliding tray design .
· Available for the installation of FC/SC/ST/LC adaptor.

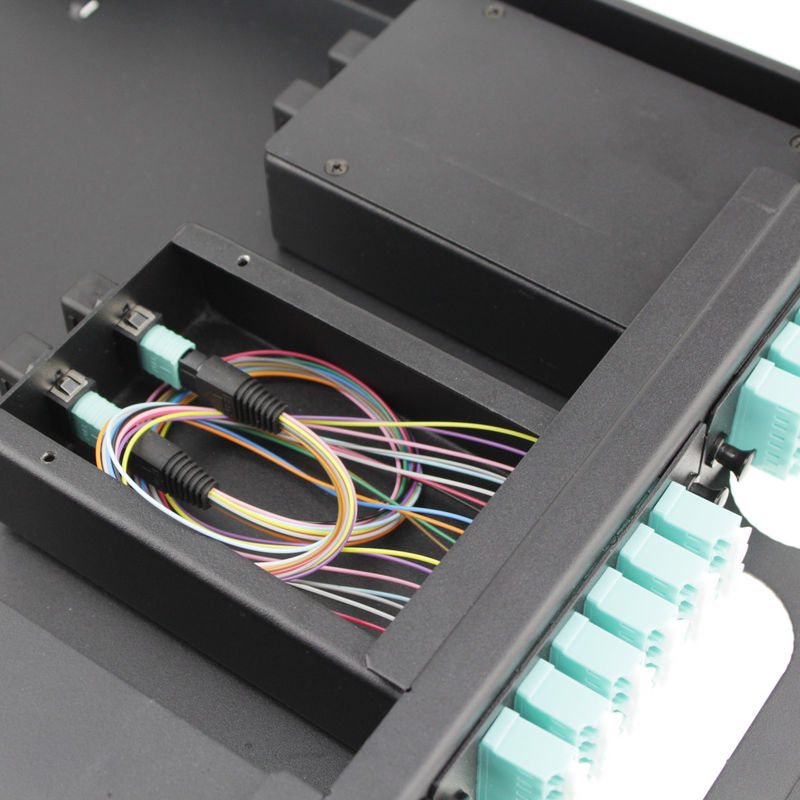

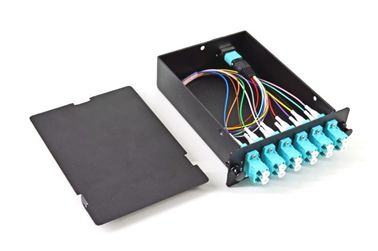

MPO/MTP CASSETTES is made of cold rolled steel sheet or Aluminum, MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution
High-density and small design;
8 and 12 and 24 fiber versions – 4/6/12 LC (Duplex) / SC (Simplex) optical parts
Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.
Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance
Metallic shell with high strength protect the inner fibers effectively
Supports easy reconfiguration for moves, adds, and changes
Available for the installation of LC/SC adapter.
|Fiber Count||24||Fiber Type||Fiber Type|
Front Connector Type
12x LC UPC Duplex
12x LC UPC Duplex
2x MTP UPC Base-12 (male)
1x MTP UPC Base-12 (male)
Key up to Key down
Key up to Key UP
|LC Adapter||LC DX SC footprint|
LC DX SC footprint
SM: MTP≤0.35dB, LC≤0.2dB
MM: MTP≤0.35dB, LC≤0.2dB
SM: MTP≥60dB, LC≥50dB
MM: MTP≥20dB, LC≥20dB
0°C to 70°C
(32°F to 158°F)
|Storage and Shipping Temperature||-40°C to +75°C|
