Product Details:
|
| Material: | Plastic | Mode Type: | SM / MM / APC |
|---|---|---|---|
| Insert Loss: | ≤0.20dB | Plug Times: | >1000 Times |
| Operating Temperature: | -25° ~ +85° | Connector Type: | LC / SC / FC / ST / MPO / MU |
| Delivery Time: | 2-10 Working Days After Received Payment | Payment: | T/T , L/C , Westen Union , Paypal |
| High Light: | fiber optic cable adapter,sc simplex adapter |
||

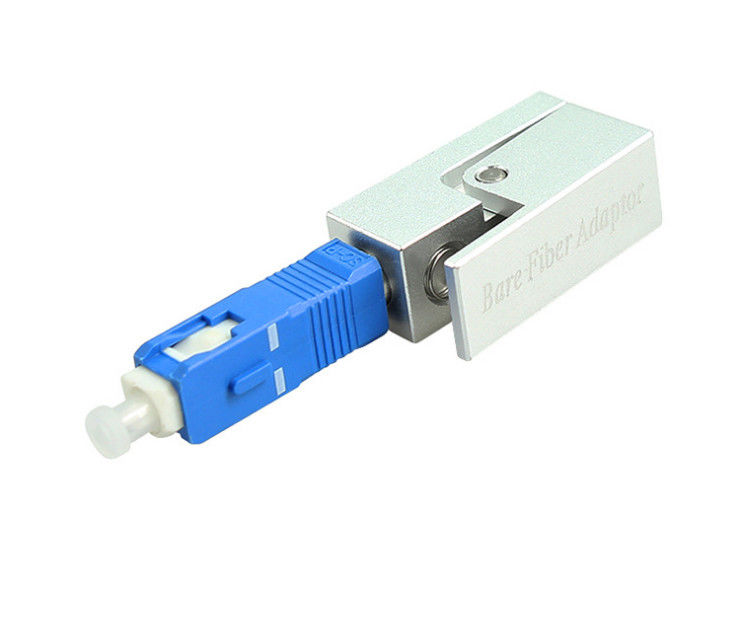

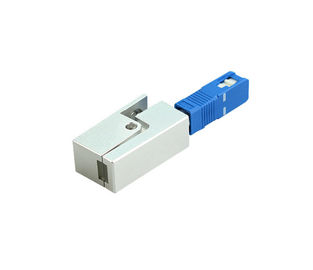

SC bare fiber fiber optic adapter for optical fiber patch cord pigtail
Product Description
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Feature:
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Applications:
1.Fiber Optic Telecommunications
2.LAN (Local Area Network)
3.FTTH (Fiber To The Home)
4.CATV&CCTV System
5.High speed transmission systems
6.Fiber optic sensing
7.Industtial, Mechanical and Military
Specification:
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
More products
Company introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Production :
Quality control :
Packing
Delivery and payment
FQA
