Product Details:
|
| Material: | Plastic / Metal | Connector Type: | SC / LC / ST / FC / MPO |
|---|---|---|---|
| Mode Type: | Single / Multi Mode | Repeatability: | >1000 Times |
| Attenuation: | 1-30 DB | Return Loss: | PC ≥ 45dB UPC ≥55dB APC ≥65dB |
| Delivery Time: | 2-10 Working Days After Receive Payment | Packing: | Standard Export Package |
| Payment Term: | T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM | Certificate: | CE , ISO , RoHS |
| Highlight: | variable optical attenuator,fixed optical attenuator |
||
Product Description

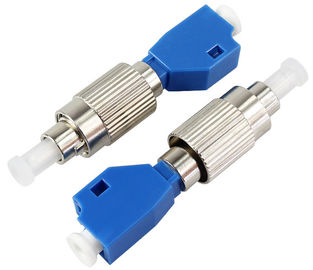

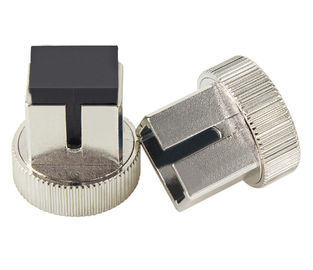

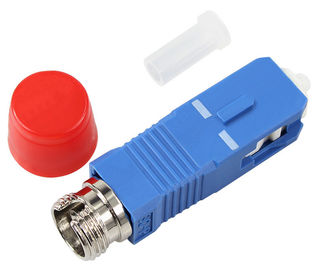

SC / LC / FC fiber optical Attenuator for fiber optical cable / patch cord
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators.
Features :
Specification:
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
Application:
More picture
Your may like
Company introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.
Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products received high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Production
Test
Quality control
Packing
Delivery and payment
Ordering Information:
LC/UPC-SM-5dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
