Product Details:
|
| Brand Name: | New Light | Fiber Type: | 0.9 /2.0 / 3.0 Mm |
|---|---|---|---|
| Connector Type: | LC / FC / SC / ST | Core Type: | 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64 |
| Operating Wave: | 1260-1650 | Mode Type: | Single Mode |
| OEM / ODM: | Acceptable | Fiber Length: | As Your Requirement |
| Warranty: | 5 Years | Delivery Time: | 2-10 Working Days After Receive Payment |
| Payment: | T/T , L/C , Paypal , Westen Union , Money Gram | ||
| High Light: | fiber optic plc splitter,single mode fiber splitter |
||

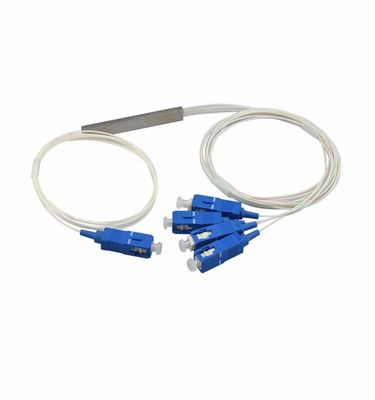

1x16 / 1x32 / 1x64 SC APC optical spliter fiber optic splitter optical fiber PLC
Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.
Specifications
1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | ||
| Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | |
| (P/S) Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | ||
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | |
| Polarization Dependent Loss (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
2×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S) Max | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
| Loss Uniformity (dB) | Max | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
Package Dimensions
| Port | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 |
|
LxWxH (mm) |
100x80x10 | 120x80x18 | 140x114x18 | |||||||||
Application
* Telecommunication System
* Testing Equipment
* CATV System
* Long-haul Telecommunication
* LAN System
Feature
PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available
