Product Details:
|
| Brand Name: | New Light | Fiber Type: | 0.9 /2.0 / 3.0 Mm |
|---|---|---|---|
| Connector Type: | LC / FC / SC / ST | Core Type: | 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64 |
| Operating Wave: | 1260-1650 | Mode Type: | Single Mode |
| OEM / ODM: | Acceptable | Fiber Length: | As Your Requirement |
| Warranty: | 5 Years | Delivery Time: | 2-10 Working Days After Receive Payment |
| Payment: | T/T , L/C , Paypal , Westen Union , Money Gram | ||
| High Light: | fiber optic plc splitter,single mode fiber splitter |
||

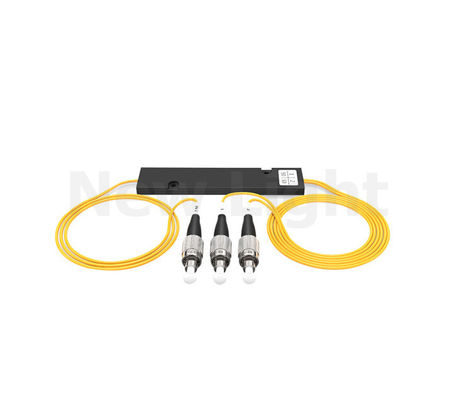

1x16 / 1x32 / 1x64 SC / LC / FC fiber optic splitter optical fiber PLC cable
Description
Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON)
networks to realize optical signal power splitting.
We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.
Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
|
Temperature Stability (-40~85 ℃)(dB) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | |||||
| Storage Temperature (℃) | -40~85 | |||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
| Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
| Mini-Module Dimension (mm) | 50×7×4 | 50×7×4 | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
Specified without connectors.
Add an additional 0.15dB loss per connector.
| Ordering information | |||||||
| PLC | Port | Input Pigtall Style | Input Connector | Output Pigtll Style | Fiber Length | Output Connector | Package type |
|
0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64
|
0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC S=Special |
0=bare fiber 1=900um Loose tube 2=900um Jacket 3=2.0mmcable 4=3.0mmcable |
0=0.5m 1=1m 2=1.5m 3=2m
S=special |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=LC/PC 7=LC/APC S=Special |
A=4X4X40 B=4X7X50 C=4X12X60 D=4X7X60 E=6X20X80 F=100X80X10 G=120X80X18 H=140X115X18 I=19”1U Rack S=Special
|
|
Applications
FTTX Systems
LAN, WAN and metro networks
Analog/Digital passive optical networks
CATV networks
Other applications in fiber optic systems
Features
Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Wide operating temperature
Compact design
