Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks

Brand Name:	New Light
Model Number:	LC / FC / SC / FC
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

0.9 /2.0 / 3.0 Mm

Connector Type:

LC / FC / SC / ST

Core Type:

1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64

Operating Wave:

1260-1650

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

5 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

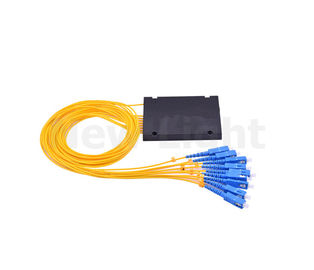

1×N PLC Splitter fiber optic splitter SC / LC / FC connector optical fiber PLC

Description

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6	100×40×6

Application:

1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)

6) Fiber Communication Systems

Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks 0

Key features:

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C - 85°C

7) High Reliability and Stability

Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks 1

More products

You may like

Company Introduction

New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

Products with high reputation and feedback from all customers!

Please contact us if any we can support and cooperate together!
