Description

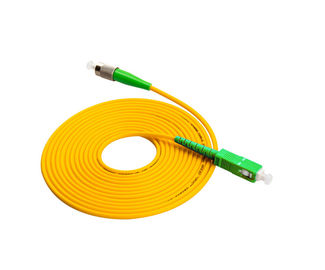

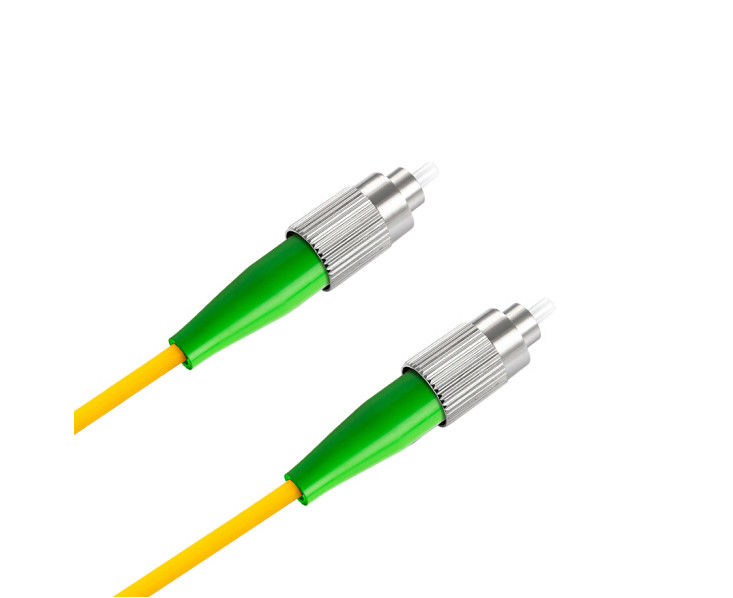

FC APC Yellow Optical Fiber Patch Cord Single Mode Simplex 3.0 Cable Simplex Core
optical fiber patch cord Features
Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable
optical fiber patch cord Specifications
| Parameters |
Standard Fiber Cable Assemblies |
| Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials |
LSZH/OFNR/PVC |
| Connector Type |
SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials |
Ceramic |
| Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
| Insertion Losss(dB) |
≤ 0.25dB(PC/UPC/APC) |
≤ 0.3dB(PC/UPC) |
| Return Loss(dB) |
≥50dB(PC/UPC)
≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability |
≤ 0.2dB |
| Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
| Operating Temperature (° C) |
-10~ + 70 |
| Storage Temperature (° C) |
-40 ~ +85 |
| Package |
1unit/bag |
| *All values specified are with connectors. |
optical fiber patch cord Applications
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks
| connoctor type |
SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables |
PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color |
yellow,gray,sky bule ,orange,white,black... |
optical fiber patch cord Packaging & Shipping
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another
- preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
How to place order
1. Connector type : SC / FC / LC / ST / MPO / MU / MTRJ / E2000
2. Mode type : single mode / multi mode
3. Cable diameter : 0.9 / 2.0 / 3.0 mm
4. Coating material : PVC / LSZH
5. Core type : simple / duplex / 4 core / 6core / 8 core /12 core / 24core
6. Cable type : G652D / G657A1 / G657A2 / OM1 / OM2 / OM3-150 / OM3-300 / OM4
7. Patch cord length : according to your requirements
Our Services
- "One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
- Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
- Long warranty : 3 years warranty . We can polish or test it for free if the cable is not artificial damaged . (but you need to pay for freight ) .
