Product Details:
|
| Brand Name: | New Light | Fiber Type: | 0.9 /2.0 / 3.0 Mm |
|---|---|---|---|
| Connector Type: | LC / FC / SC / ST | Core Type: | 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64 |
| Operating Wave: | 1260-1650 | Mode Type: | Single Mode |
| OEM / ODM: | Acceptable | Fiber Length: | As Your Requirement |
| Warranty: | 5 Years | Delivery Time: | 2-10 Working Days After Receive Payment |
| Payment: | T/T , L/C , Paypal , Westen Union , Money Gram | ||
| High Light: | fiber optic plc splitter,single mode fiber splitter |
||
Description
Specifications

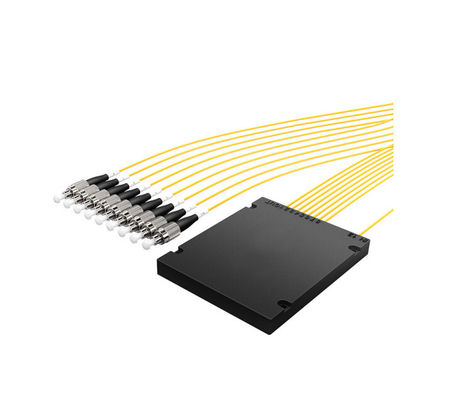

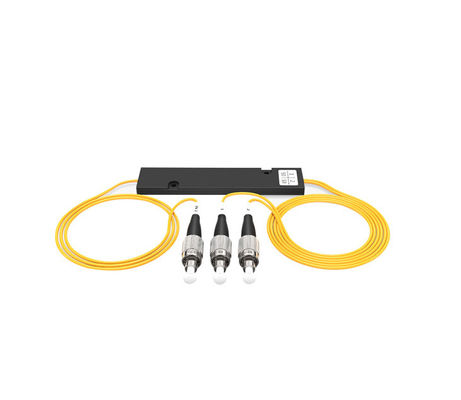

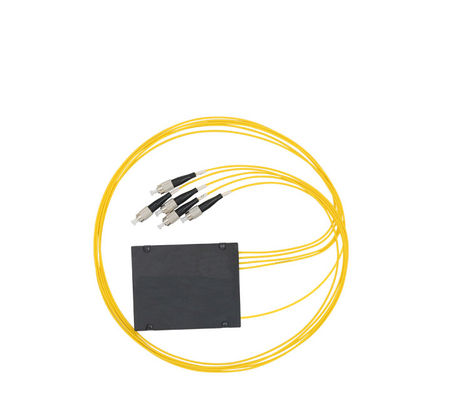

1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | ||
| Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | |
| (P/S) Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | ||
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | |
| Polarization Dependent Loss (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
2×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S) Max | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
| Loss Uniformity (dB) | Max | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
Package Dimensions
| Port | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 |
LxWxH | 100x80x10 | 120x80x18 | 140x114x18 | |||||||||
Application
* Telecommunication System
* Testing Equipment
* CATV System
* Long-haul Telecommunication
* LAN System
Feature
PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available
Technique Parameter
Compliant with : RoHS/ISO-9001/IEC-61754/Telcordia-GR-326-CORE
Company Introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Packing
preferred carrier, please notify us in advance.
Delivery and payment
Payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
