Fiber Optic Splitter

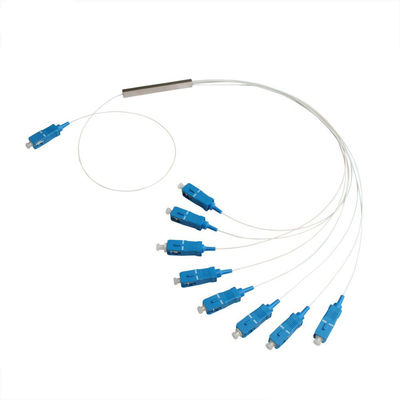

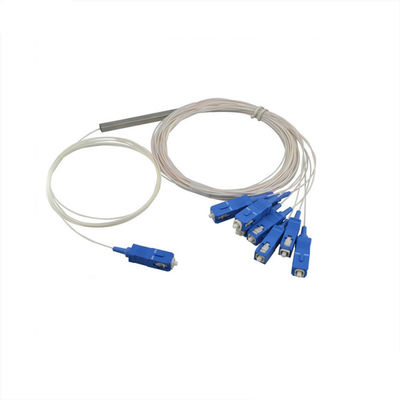

1x16 SC/APC PLC Fiber Optic Splitter with 1260-1650nm Wavelength for Optical Power Management

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1x16 SC/APC PLC Fiber Optic Splitter with 1260-1650nm Wavelength for Optical Power Management

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000 / MU / MTRJ / MPO / MTP
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

0.9 /2.0 / 3.0 Mm

Connector Type:

LC / FC / SC / ST / E2000

Core Type:

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

5 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1*16 SC/PC PLC Fiber Optic Splitter

SC APC Splitter Optical Power Management Device

Product Overview

Planar light-wave circuit splitter (PLC Splitter) is an optical power management device fabricated using silica optical waveguide technology. It features a wide operating wavelength range, excellent channel-to-channel uniformity, high reliability, and compact size. Widely used in FTTX PON networks for optical signal power management.

Note: Measurements taken at room temperature excluding connector loss

Technical Specifications

Operating Wavelength (nm)	1260-1650	Inspected Date	2017/11/22
P/N	1x16-PLC-0.9-1.0	S/N	1711116001
Fiber Type	G.657A with 0.9mm loose tube	Fiber Length (m)	≥1.0
Connector Type	SC/APC	Package Dimension (mm)	60124
Storage Temperature	-40~+85℃	Operating Temperature	-40~+85℃

Performance Data

Item	IL(dB)	PDL(dB)	RL(dB)
Wavelength(nm)	1310 \| 1550	1310 \| 1550	1310 \| 1550
Spec.	MAX13.6	MAX 0.25	≥55
Port1	13.11 \| 13.34	0.03 \| 0.03	Pass \| Pass
Port2	13.26 \| 13.41	0.03 \| 0.03	Pass \| Pass
Port3	13.28 \| 13.15	0.04 \| 0.03	Pass \| Pass
Port4	13.39 \| 13.09	0.04 \| 0.02	Pass \| Pass
Port5	13.35 \| 13.03	0.03 \| 0.04	Pass \| Pass
Port6	13.48 \| 13.40	0.04 \| 0.04	Pass \| Pass
Port7	13.33 \| 13.45	0.03 \| 0.02	Pass \| Pass
Port8	13.26 \| 13.33	0.04 \| 0.03	Pass \| Pass
Port9	13.02 \| 13.33	0.03 \| 0.04	Pass \| Pass
Port10	13.46 \| 13.38	0.02 \| 0.03	Pass \| Pass
Port11	13.27 \| 13.25	0.02 \| 0.04	Pass \| Pass
Port12	13.46 \| 13.15	0.04 \| 0.02	Pass \| Pass
Port13	13.24 \| 13.17	0.04 \| 0.03	Pass \| Pass
Port14	13.15 \| 13.42	0.03 \| 0.04	Pass \| Pass
Port15	13.32 \| 13.44	0.03 \| 0.03	Pass \| Pass
Port16	13.02 \| 13.19	0.03 \| 0.03	Pass \| Pass
Input	N/A	Pass	Pass
MAX.	13.48 \| 13.45	0.04 \| 0.04	N/A
MIN.	13.02 \| 13.03	0.02 \| 0.02	N/A
Average	13.28 \| 13.28	0.03 \| 0.03	N/A
Uniformity(≤1.0dB)	0.46 \| 0.473	Directivity(dB)	≥55

Applications

Telecommunication Systems
Testing Equipment
CATV Systems
Long-haul Telecommunication
LAN Systems

Key Features

PC, UPC, APC polishing available
High return loss
Low insertion loss
High reliability and stability
Available for singlemode/multimode and simplex/duplex
0.9mm, 2.0mm, 3.0mm diameter cable available

Compliance Standards

RoHS / ISO-9001 / IEC-61754 / Telcordia-GR-326-CORE

Company Profile

New Light Optics Technology Limited is a high-tech company specializing in the R&D, manufacturing, sales, and service of optical communication products. Established in 2011, our factory has 6 years of OEM and manufacturing experience serving customers worldwide.

Our product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Our products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and other applications.

We feature advanced technology, professional R&D teams, sophisticated production equipment, and experienced engineers. With a high-quality control system, our products are delivered to over 60 countries and regions including USA, Europe, Brazil, Middle East, and Asia.

Packaging & Shipping

Packaging: Bags & carton boxes
Shipping: International Express via FedEx, DHL, UPS, TNT, EMS, or by sea
FedEx Overnight: 1-3 business days delivery
DHL: 2-4 business days delivery (longer for Spain, Italy, Brazil due to customs)
Please notify us in advance if you have a preferred carrier

Payment Terms

Accepted Methods: T/T, PAYPAL, Western Union, Money Gram, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery

Our Services

"One to one" personalized service with dedicated sales representatives
24-hour after-sales support with designated telephone and email contacts
3-year warranty with free polishing and testing for non-artificially damaged cables (customer pays freight)
