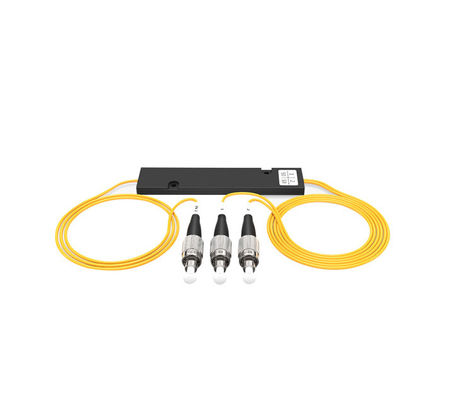

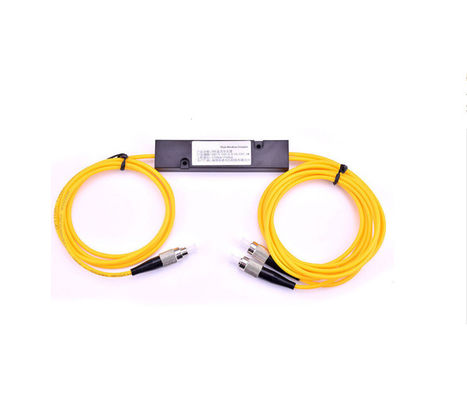

1 X 2 FC/UPC PLC Fiber Optic Splitter with Low Insertion Loss for Terminal Box Applications

Brand Name:	New Light
Model Number:	LC / FC / SC / ST / E2000 / MU / MTRJ / MPO / MTP
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Fiber Type:

0.9 /2.0 / 3.0 Mm

Connector Type:

LC / FC / SC / ST / E2000

Core Type:

Operating Wave:

1260-1650

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Fiber Length:

As Your Requirement

Warranty:

5 Years

Delivery Time:

2-10 Working Days After Receive Payment

Payment:

T/T , L/C , Paypal , Westen Union , Money Gram

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

fiber optic cable splitter

Product Description

FC/UPC PLC Fiber Optic Splitter 1x2 - Low Insertion Loss Terminal Box Application

High-performance 1x2 FC/UPC PLC fiber optic splitter designed for terminal box applications with exceptional reliability and low insertion loss characteristics.

Key Features

All-optical structure design
High reliability and stability
Low PDL and insertion loss
High directivity and return loss
Excellent polarization insensitivity
Flexible packaging options
Available in singlemode and multimode configurations
Multiple cable diameters: 0.9mm, 2.0mm, 3.0mm
PC, UPC, APC polishing available

Technical Specifications

Parameter	Specification
Operating Wavelength	1310nm or 1550nm (custom wavelengths available)
Coupling Ratio	10/90, 20/80, 30/70, 40/60, 50/50 (custom ratios available)
Connector Types	FC, SC, ST, LC, LC/APC, SC/APC, MU, FC/APC
Insertion Loss	≤ 0.20dB - ≤ 0.30dB
Return Loss	≥ 35dB - ≥ 60dB
Exchangeability	≤ 0.20dB
Repeatability	≤ 0.10dB
Operating Temperature	-40°C to +75°C
Storage Temperature	-40°C to +85°C

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks (LAN)
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks (WAN)

Standards Compliance

Compliant with RoHS, ISO-9001, IEC-61754, and Telcordia GR-326 standards.

Packaging & Shipping

Packaging: Bags and carton boxes
Shipping Options: FedEx, DHL, UPS, TNT, EMS, or by sea
FedEx Overnight: 1-3 business days
DHL: 2-4 business days (longer for certain countries due to customs)

Payment Terms

Accepted methods: T/T, PayPal, Western Union, Money Gram, L/C

Terms: 30% deposit in advance, 70% balance paid before delivery

Warranty & Service

3-year warranty period
Free polishing or testing for non-artificially damaged cables (customer pays freight)
24-hour designated support via telephone and email
Dedicated customer manager service
