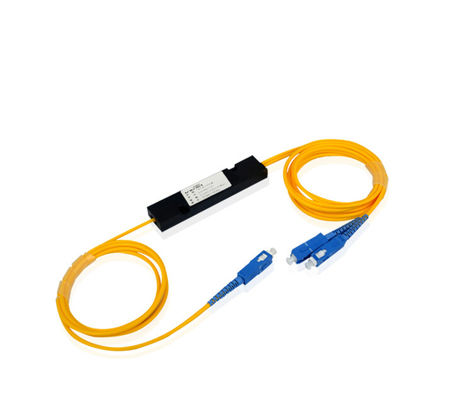

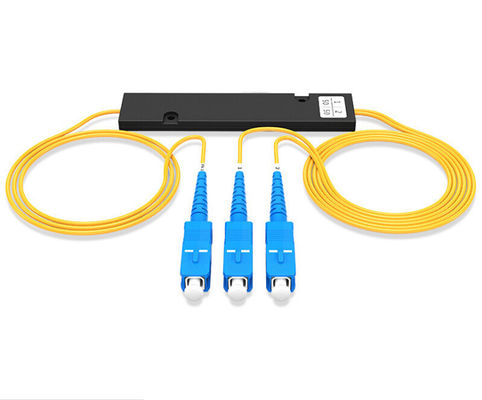

Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application

Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application
Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application

Large Image :  Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE , ISO ,RoSH
Model Number: LC / FC / SC / ST / E2000 / MU / MTRJ / MPO / MTP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: foam + carton box
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal
Supply Ability: 2000 pcs per month

Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application

Description
Brand Name: New Light Fiber Type: 0.9 /2.0 / 3.0 Mm
Connector Type: LC / FC / SC / ST / E2000 Core Type: 1x2 / 1x4 / 1x6 / 1x16 / 1x32
Operating Wave: 1260-1650 Mode Type: Single Mode
OEM / ODM: Acceptable Fiber Length: As Your Requirement
Warranty: 3 Years Delivery Time: 2-10 Working Days After Receive Payment
Payment: T/T , L/C , Paypal , Westen Union , Money Gram
High Light:

single mode fiber splitter

,

fiber optic cable splitter




Description

1 x 2 Fiber Optic Splitter SC / UPC PLC for CATV / FTTX system



The fiber optic splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.





Parameters1×21×41×81×161×321×64
Operating Wavelength (nm)1260~1650
Fiber TypeSMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)4.0/3.87.3/7.010.5/10.213.7/13.516.9/16.521.0/20.5
Loss Uniformity (dB)0.40.60.81.21.52.5
Return Loss (dB) (S/P Grade)50/5550/5550/5550/5550/5550/55
Polarization Dependent Loss(dB)0.20.20.30.30.30.4
Directivity (dB)555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temperature Stability(-40~85 °C)(dB)0.50.50.50.50.50.5
Operating Temperature (°C)-40~85
Storage Temperature (°C)-40~85
Packaging Dimension (mm) (L×W×H)40×4×440×4×440×4×440×4×450×7×460×12×4



 How  to order



Ordering information
PLCPortInput Pigtall StyleInput ConnectorOutput Pigtll StyleFiber LengthOutput ConnectorPackage type

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64


0=bare fiber
1=900um
Loose tube
2=900umJacket
3=2.0mmcable
4=3.0mmcable

0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST
6=LC
7=LC/APC
S=Special

0=bare fiber
1=900um
Loose tube
2=900um
Jacket
3=2.0mmcable
4=3.0mmcable

0=0.5m
1=1m
2=1.5m
3=2m

S=special

0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST/PC
6=LC/PC
7=LC/APC
S=Special

A=4X4X40
B=4X7X50
C=4X12X60
D=4X7X60
E=6X20X80
F=100X80X10
G=120X80X18
H=140X115X18
I=19”1U Rack
S=Special







Application


  • CATV;
  • Active device termination;
  • Telecommunication networks;
  • Metro;
  • Local Area Networks;
  • Data processing networks;
  • Test equipment;
  • Premise installation;
  • Wide Area Networks




Feature

PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available



Technique Parameter


Compliant with : RoHS/ISO-9001/IEC-61754/Telcordia-GR-326-CORE
