Product Details:
|
Brand Name: | New Light | Fiber Type: | 0.9 /2.0 / 3.0 Mm |
---|---|---|---|
Connector Type: | LC / FC / SC / ST / E2000 | Core Type: | 1x2 / 1x4 / 1x6 / 1x16 / 1x32 |
Operating Wave: | 1260-1650 | Mode Type: | Single Mode |
OEM / ODM: | Acceptable | Fiber Length: | As Your Requirement |
Warranty: | 3 Years | Delivery Time: | 2-10 Working Days After Receive Payment |
Payment: | T/T , L/C , Paypal , Westen Union , Money Gram | Products: | 1 X 2 / 4 / 32 FWDM / CWDM Fiber Optic Splitter SC Connector PLC |
High Light: | single mode fiber splitter,fiber optic cable splitter |
Description

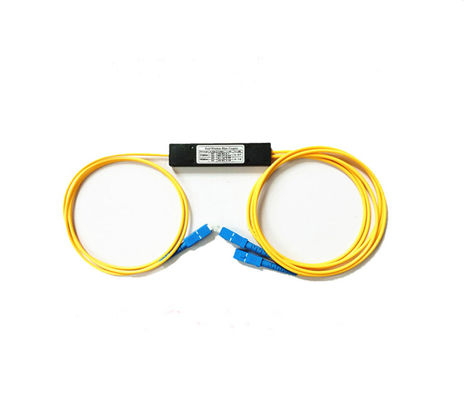

1 x 2 / 4 / 32 FWDM / CWDM Fiber Optic Splitter SC connector PLC

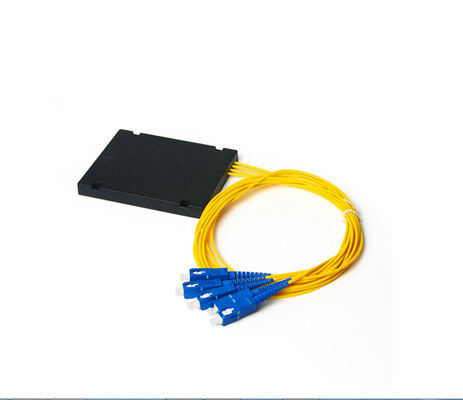

1x32PLC splitter can be customized by user. The optical distributing ratio of PLC splitter is symmetrical. It can be applied in most optical management system. Cassette type splitter is composed with connectors.
New Light provides a high precise PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact cassette type design, can easily be placed into optical fiber distribution box, optical fiber junction box or any kind of box which reserved some space.
Parameter | Configuration | |||
N x 4 (N=1,2,4) |
N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | ≥60 | |||
Operate Temperature() | -20+70 | |||
Lead Length(m) | 1 or customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
Package Dimension(mm, L*W*H) | A:φ3.0,L=50 | B:89*19*8 | C:99*79*9 |
D:140*114*18 |
How to order
Ordering information | |||||||
PLC | Port | Input Pigtall Style | Input Connector | Output Pigtll Style | Fiber Length | Output Connector | Package type |
0102=1x2 |
0=bare fiber |
0=none |
0=bare fiber |
0=0.5m |
0=none |
A=4X4X40 |
Application
Feature
PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available
Company Introduction
New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.
Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc. Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.
Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.
Products with high reputation and feedback from all customers!
Please contact us if any we can support and cooperate together!
Packing
preferred carrier, please notify us in advance.
Delivery and payment
1. T/T/ , PAYPAL , WESTEN UNION , MONEY GRAM , L/C .
2. 30% deposit in advance , 70% balance paid before delivery .
Our Services
